Product Advantage:
1. Sealed and maintenance free operation.
2.Non-Spillable contruction design.
3. ABS containers and covers (UL94HB, UL94V-0)option.
4. Safety value installation for explosion proof.
5. High quality and high reliability.
6. Exceptional deep discharge recovery performance.
7. Low self discharge characteristic.
8. Flexibility design for multiple install positions.
|
|
GE 12V 100Ah |
GE 12V 150Ah |
GE 12V 200Ah |
|
Cells Per Unit |
6 |
||
|
Voltage Per Unit |
12 |
||
|
Capacity |
100Ah@ 10hr-rate to 1.80V per cell @25℃ |
150Ah@ 10hr-rate to 1.80V per cell @25℃ |
200Ah@ 10hr-rate to 1.80V per cell @25℃ |
|
Max. Discharge Current |
1000A (5sec) |
1500A (5sec) |
2000A (5sec) |
|
Internal Resistance |
Approx. 5.5mΩ |
Approx. 5.0mΩ |
Approx. 3.8mΩ |
|
Recommended Maximum Charging |
30A |
45A |
60A |
|
Operating Temperature Range |
Discharge: -20℃~60℃ Charge: 0℃~50℃ Storage: -20℃~60℃ |
||
|
Normal Operating Temperature Range |
25℃±5℃ |
||
|
Float charging Voltage |
13.6 to 13.8V DC/unit Average at 25℃ |
||
|
Equalization and Cycle Service |
14.4 to 14.6V DC/unit Average at 25℃ |
||
|
Self Discharge |
Front terminal batteries can be storage for more than 6 months at 25℃. Self-discharge ratio less than 3% per month at 25℃. Please charge batteries before using. |
||
|
Size |
410x110x293 mm |
550x110x290 mm |
561x125x317 mm |

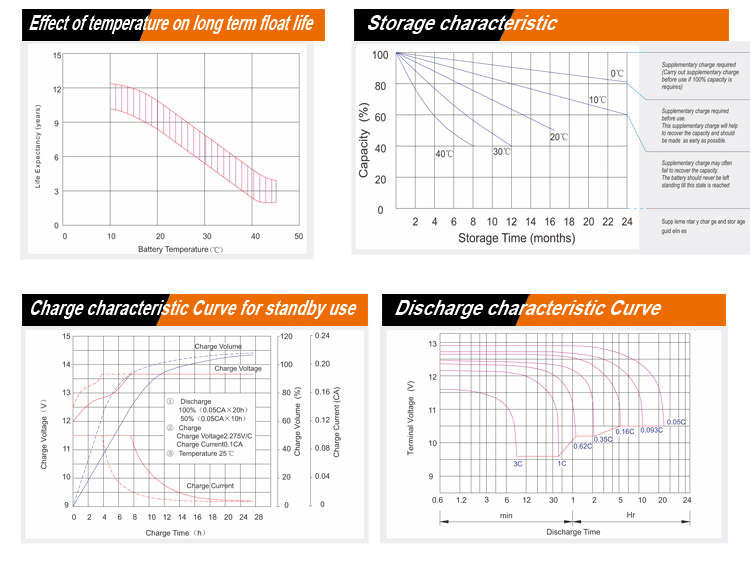

Data Curve
Application:
1. UPS system 2.Telecommunication system
3. Power station system 4. Railway system
5. Emergency lighting system 6. Automatic control system
7. Alarm system for fire protection, security 8. Solar, wind powered system
9. Portable instruments 10. Medical equipment
11. Marine Equipment 12. Electric instruments etc.
Q&A
Q: Can you print my logo on the battery cover?
A:Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and discuss with us about the details.
Q:How long is your delivery time?
A:Usually it takes about 10-20 days for production varies with products. Urgent delivery it in 5days.
Q: What is your warranty policy?
A: We provide 1 years different warranty.
Q:Why Choose Pursunsys?
A: 1) Nearly 13 years leading manufacturer,all production lines in our factory are automatic and imported from Germany.
2) 20000KWH production capacity to guarantee the best deliver time
3) The good construction warranty - 1-5 years free replacement no need return.
4) Comprehensive certificates approval: CE / ISO / IEC
5) The reasonable and most competitive price without sacrifice of quality.
6) A professional experienced team to provide you high-quality service before and after sale.
