Product Advantages:
Maintenance-Free ,Absorbent Glass Mat Technology
Low Self Discharge
Long Designed service Life
Excellent Discharge Performance
Environment Friendliness
Wide suitability of ambient temperature range
Data Sheet
Model
FL-GE-100AH
FL-GE-150AH
FL-GE-200AH
Cells Per Unit
6
Voltage Per Unit
12
Capacity
100Ah @10hr-rate to 1.80V per
cell @ 25℃
150Ah @10hr-rate to 1.80V per
cell @ 25℃
200Ah @10hr-rate to 1.80V per
cell @ 25℃
Weight
31.0KG
43.5KG
61.0KG
Max.
Discharge Current
1000A(5 sec)
1500A(5 sec)
1000A(5 sec)
Internal Resistance
Approx. 5.5mΩ
Approx. 5.0 mΩ
Approx. 4.5 mΩ
Recommended Maximum Charging Current Limit
30A
45A
60A
Operating Temperature Range
Discharge: -20℃~60℃ Charge:0℃~50℃ Storage:-20℃~60℃
Normal Operating Temperature Range
25℃ ± 5 ℃
Float charging Voltage
13.6 to 13.8V DC/unit Average at 25℃
Equalization and Cycle Service
14.4to 14.6V DC/unit Average at 25℃
Self Discharge
Front triminal batteries can be stored for more than 6 months at 25℃. Self-discharge ratio less than 3% per month at 25℃. Please charge batteries before using.
Size
410*109*293MM
550*110*290MM
550*125*317MM

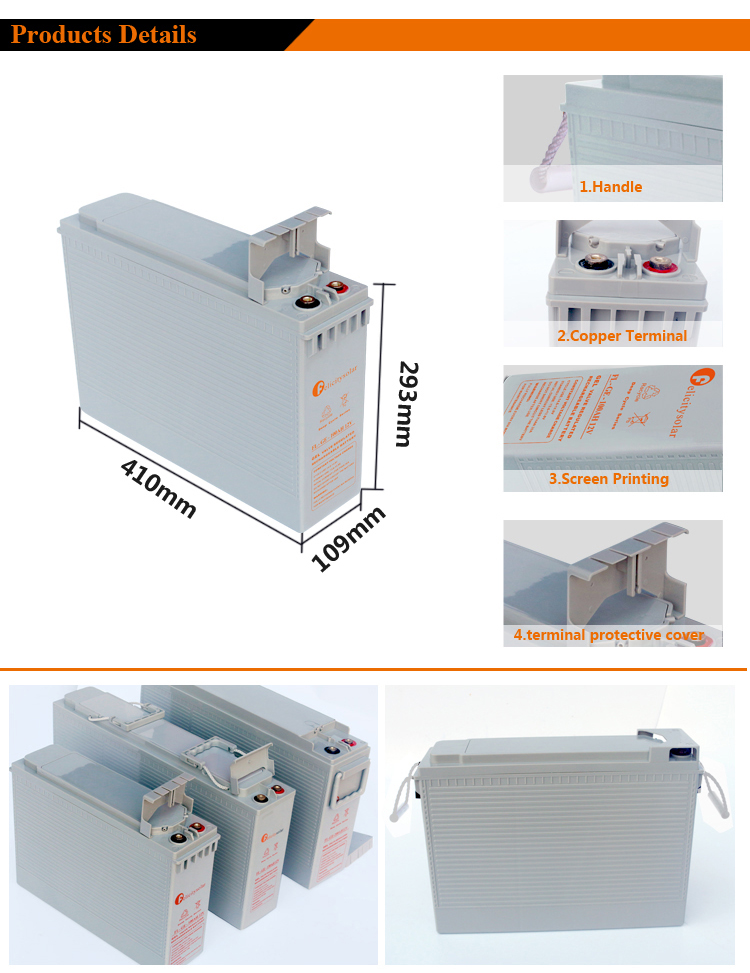

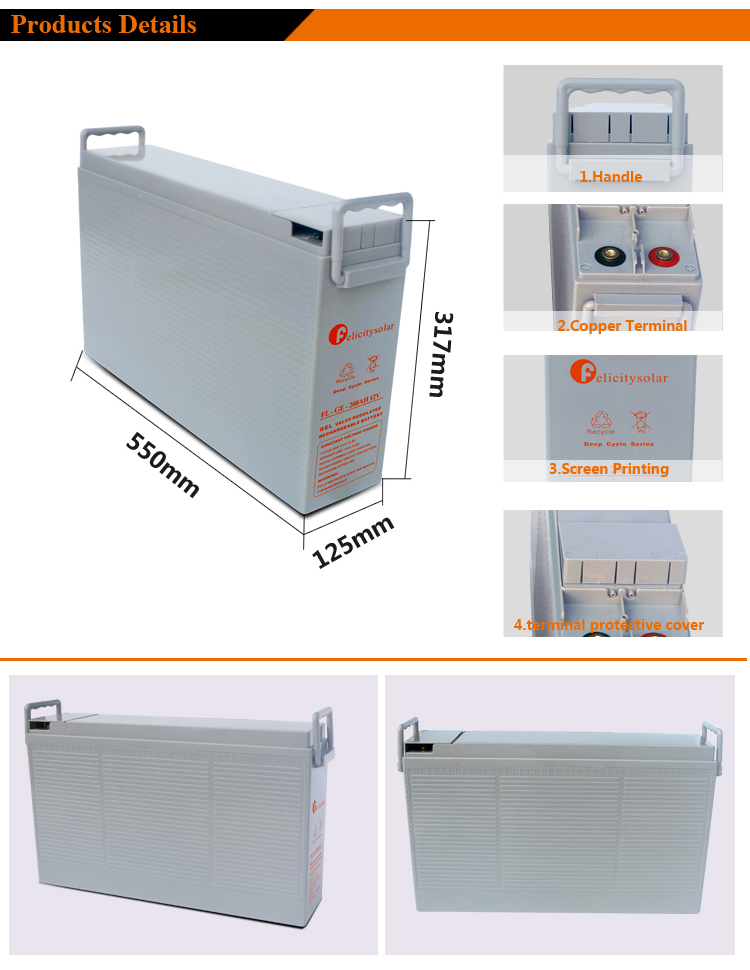

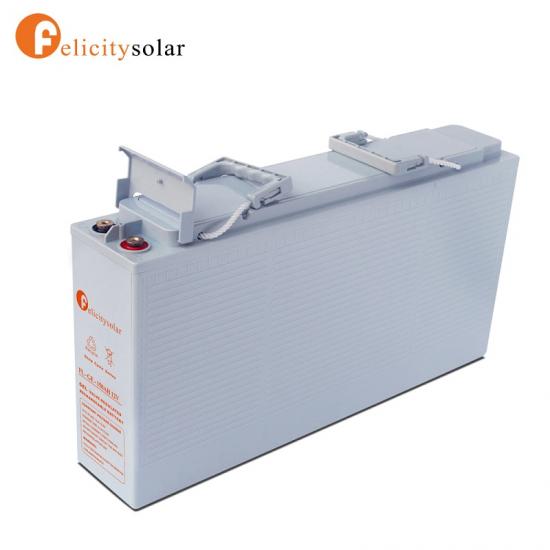

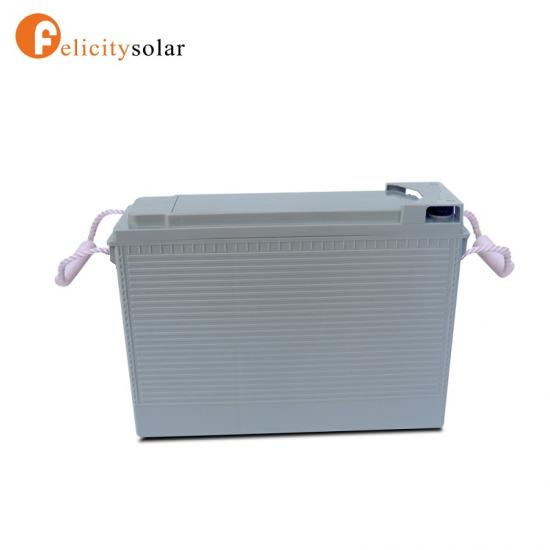

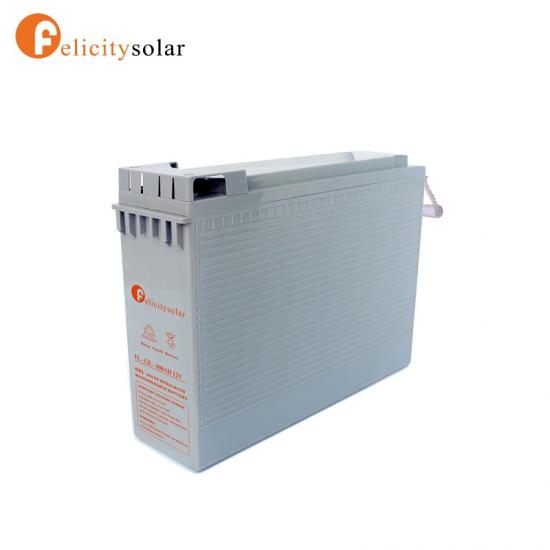

Product Details

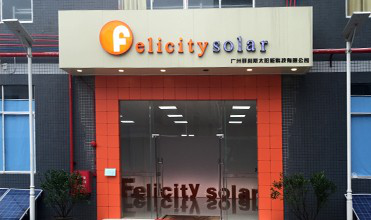

Company Profile
