The main function of the photovoltaic inverter is to convert the direct current generated by the solar panel into the alternating current used by home appliances. It is divided into two types: grid-connected inverter and off-grid inverter. high power and low cost.
The biggest difference of the grid-connected inverter is that it does not do any battery storage (of course, it can also be used with energy storage batteries for high-priced electricity), and the direct current generated from the solar panel is directly converted into alternating current through inverter and directly connected to the public power grid. , but there are certain thresholds, that is, it must comply with the relevant regulations and policies of the local power grid, otherwise the grid connection cannot be provided. And we have Grid regulation: VDE-AR-N 4105; G99/1; EN50549-1; CEI 0-21; AS 4777.2; NRS 097-2-1; Safety regulation: IEC 62109-1/2; IEC62040-1.
Product Advantages:

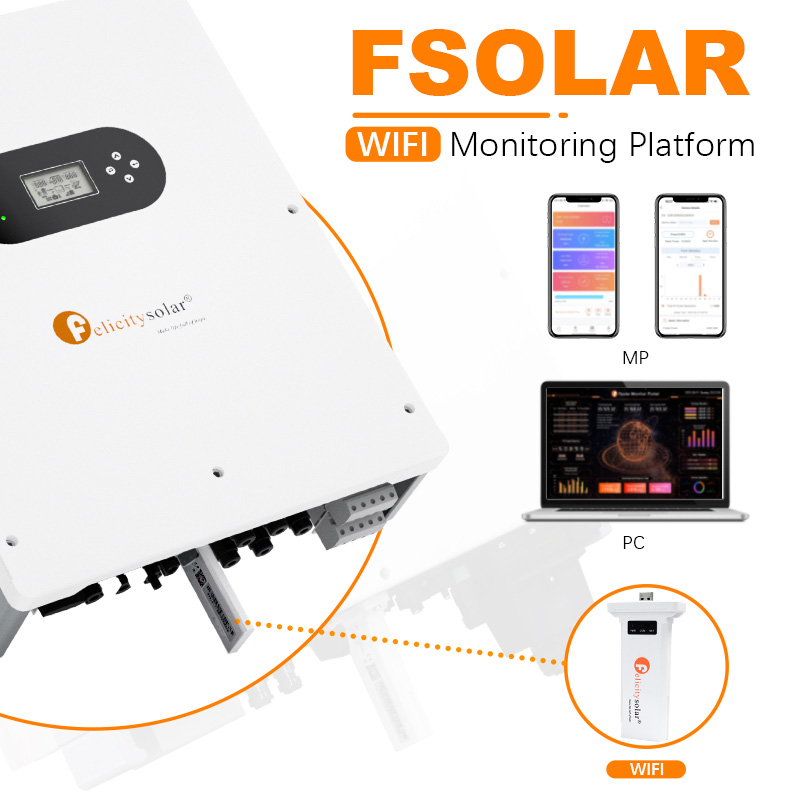

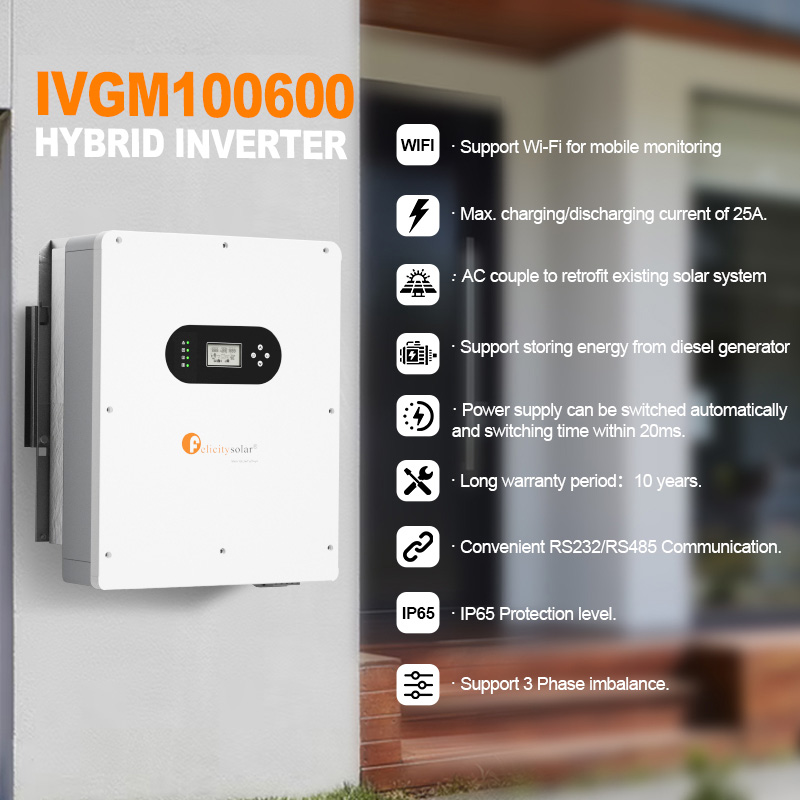

· Support Wi-Fi for mobile monitoring.
· Max. charging/discharging current of 25A.
· AC couple to retrofit existing solar system.
· Support storing energy from diesel generator.
· Power supply can be switched automatically and switching time within 20ms.
· Long warranty period：10 years.
· Convenient RS232/RS485 Communication.
· IP65 Protection level.
· Support 3 Phase imbalance.
Data Sheet
VDE-AR-N 4105; G99/1; EN50549-1; CEI 0-21; AS 4777.2; NRS 097-2-1;
IEC 62109-1/2; IEC62040-1.
Model
IVGM100600
Battery Input Data
Battery Voltage Range
180V~ 580V
Max. charging and discharging current
25A
Max. charging and discharging power
10000W
Battery type
Li-Ion / Lead-acid
DC Input Data（PV side）
Max. recommended PV power
13000W
Max. PV voltage
900V
Start voltage
160V
PV voltage range
160V~900V
MPPT voltage range
200V~850V
MPPT Voltage Range for Full Load
450V~850V
Nominal voltage
720V
Max. input current
15A / 15A
Max. shorted curent
18A/ 18A
Number of MPP trackers/ strings per MPP tracker
2/1
Grid Data
Nominal Input Voltage
230Vac/400Vac
Input Voltage Range
184~ 264. 5 Vac *
Nominal grid frequency
50/60Hz *
Max. input current
30A
Max. Charge Current
25A
Max. AC output power
10000W
AC Output Rated Current
20A
Max. output current
18A
Max. Continuous AC Pass through
30A
Power factor
> 0.99
Displacement power factor
0.8leading ···0.8lagging
THDI
<3%
AC Output Data(Back Up)
Rated output power
10000VA/ 10000W
Max. Output current
30A
Rated AC output voltage
230Vac
Rated AC output frequency
50 / 60Hz
Efficiency
Max. efficiency
97.60%
Euro efficiency
97.00%
MPPT efficiency
99.90%
General Data
Operating temperature range
- 25°C ~ 60°C, > 45°C Derating
Protection degree
IP65
Relative humidity
100%
Cooling concept
Nature
Altitude
2000m
Communication
RS232/ RS485
BMS Communication
CAN/ RS485
Monitor module
WiFi / GPRS
Display
LCD+LED
Installation Style
Wall-mounted
Warranty
10 years
Grid Regulation
Safety Regulation
EMC
EN6 10 00-6-1 . EN61000-6-3
Net Weight(KG)
36.2KG
Gross Weight(KG)
41.5KG

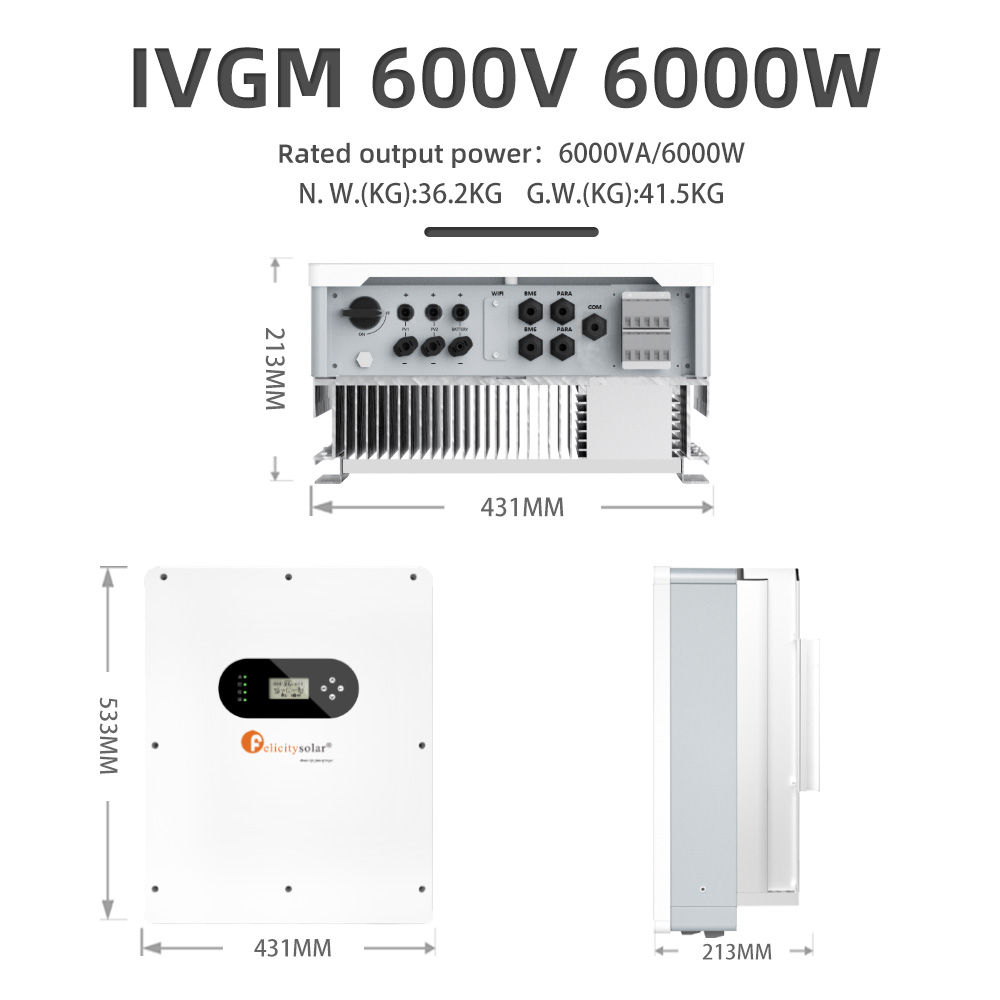

Product Dimension(MM)
533 *431 * 213
Package Dimension(MM)
635 *533 *321

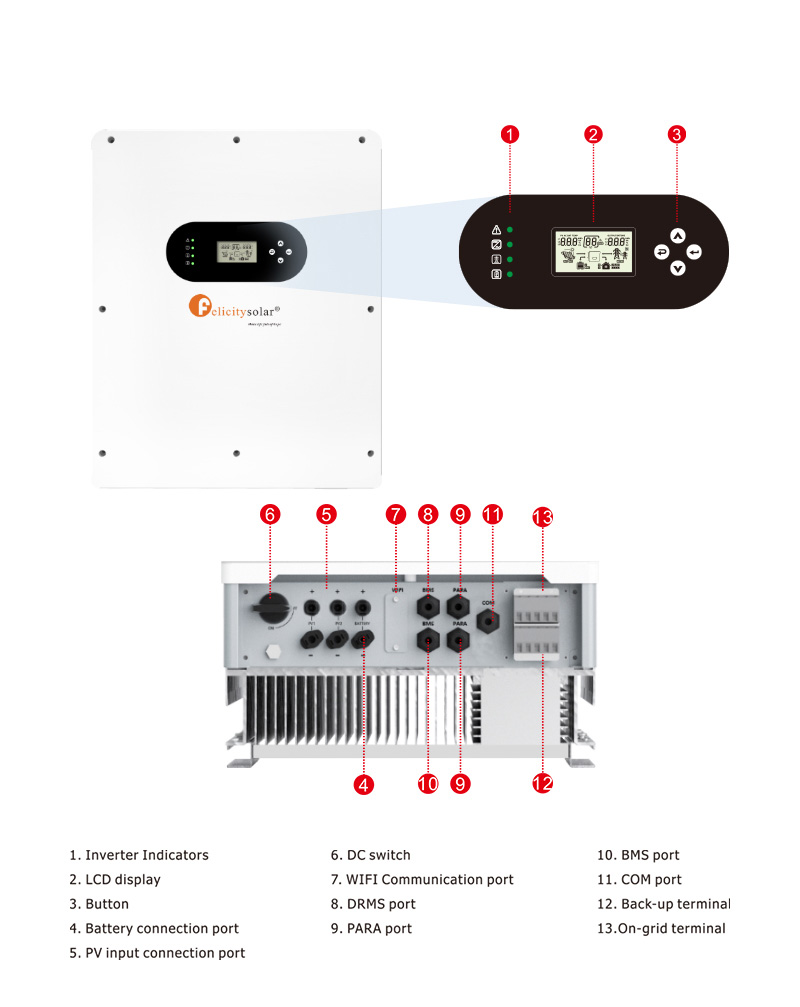

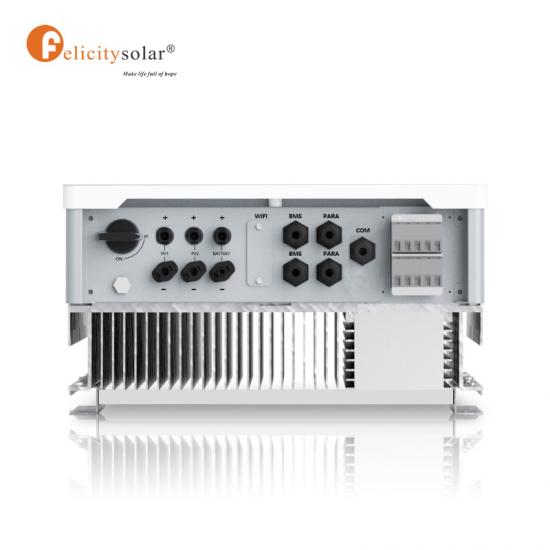

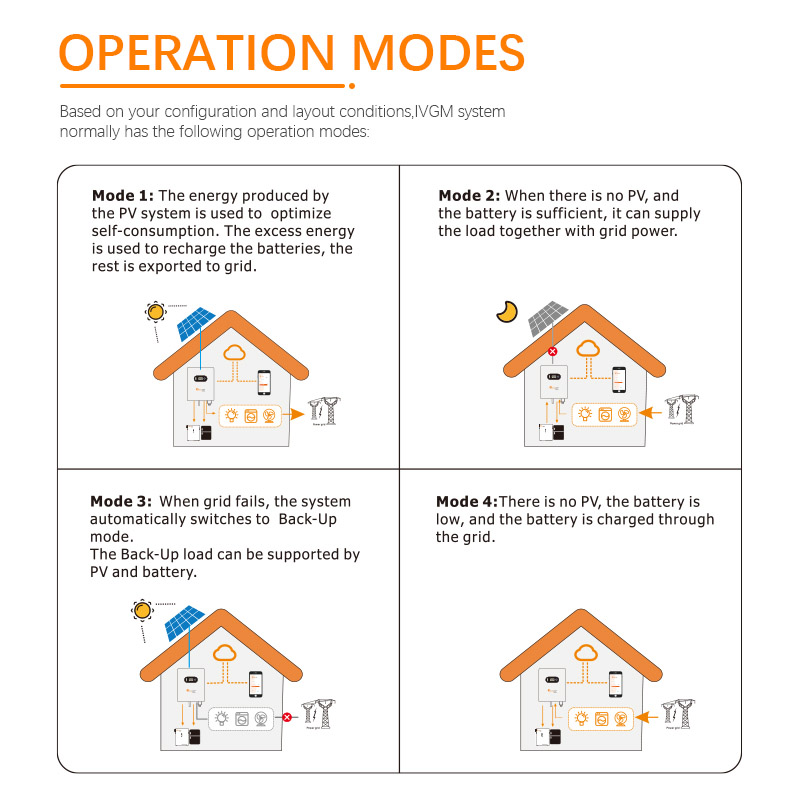

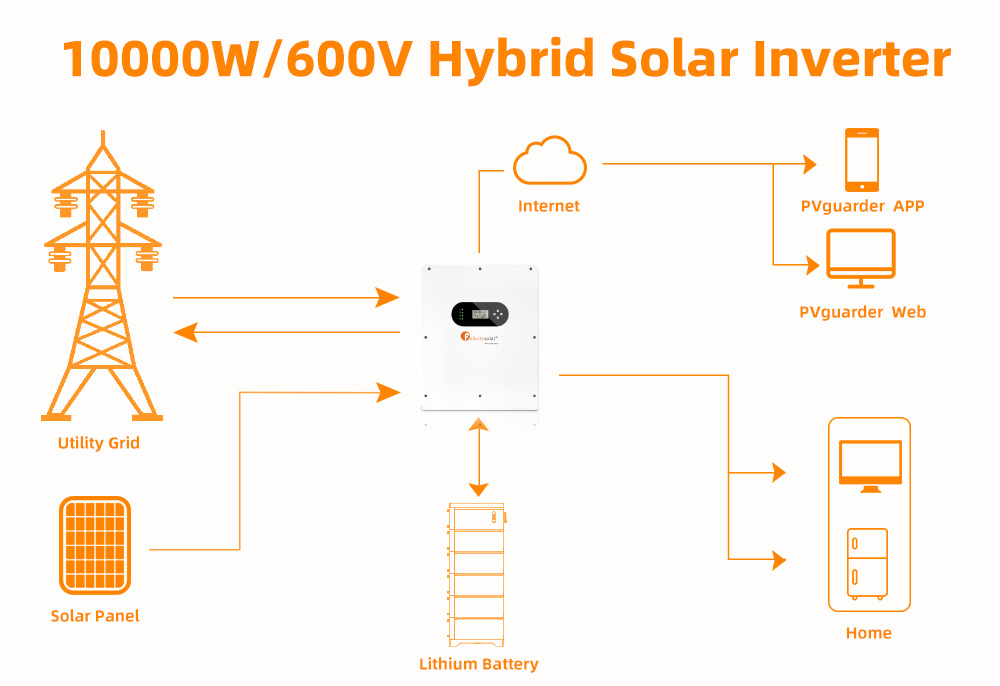

Product Details
RFQ
1.How to choose suitable inverter?
If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.
2.How do I choose the size of the inverter?
Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
3.How to calculate the load of working hours requires configuration of the battery size?
We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:
Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
