Product Advantages:

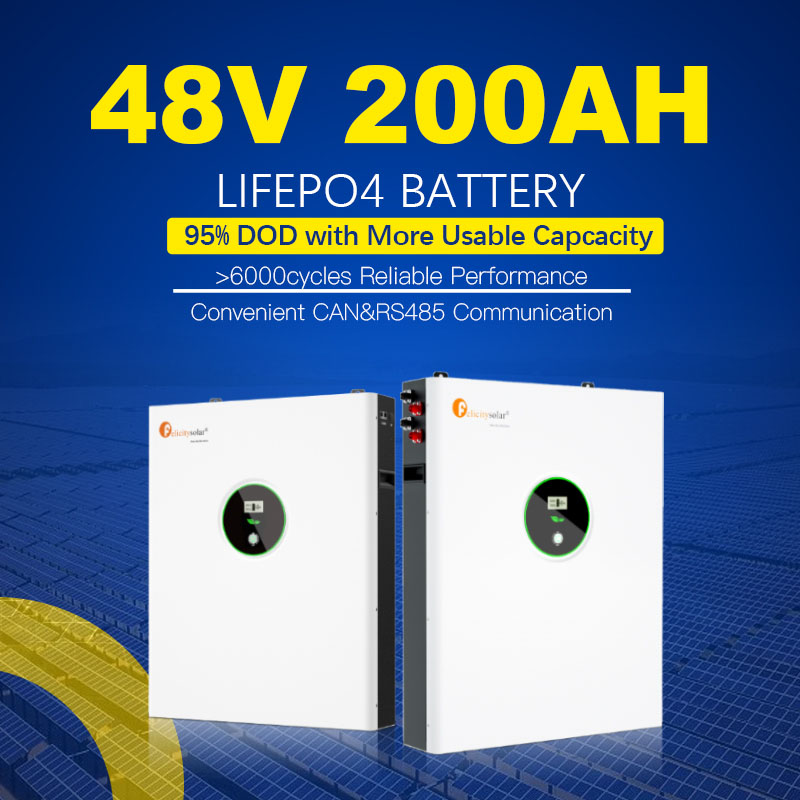

1. Iron Phosphate-lithium power battery
2. Long warranty period: 7 years
3. Higher energy density, smaller volumn for household.
4. Support Connected in parallel mode for expansion.

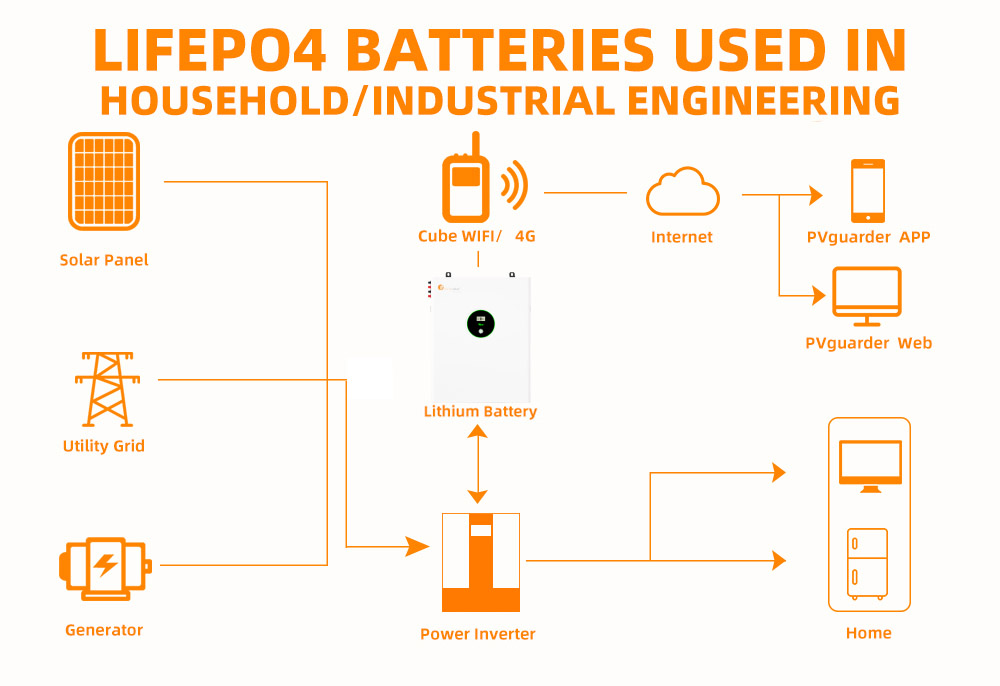

5. Photovoltaic system:this battery pack is designed for household photovoltaic systems.
6.Built-in BMS（Battery Management System）.

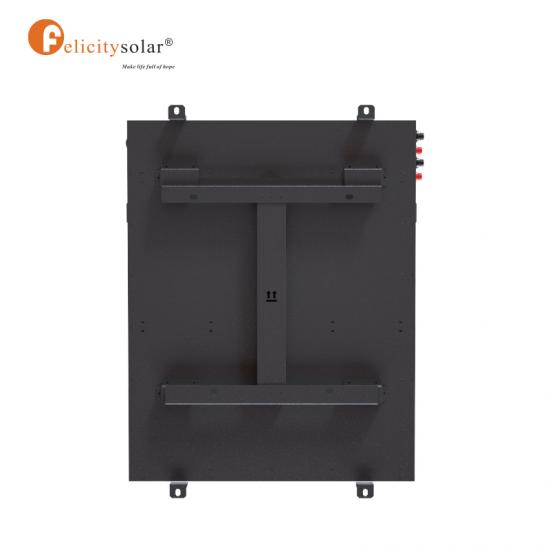

7.Floor or power wall mount for simple installation.

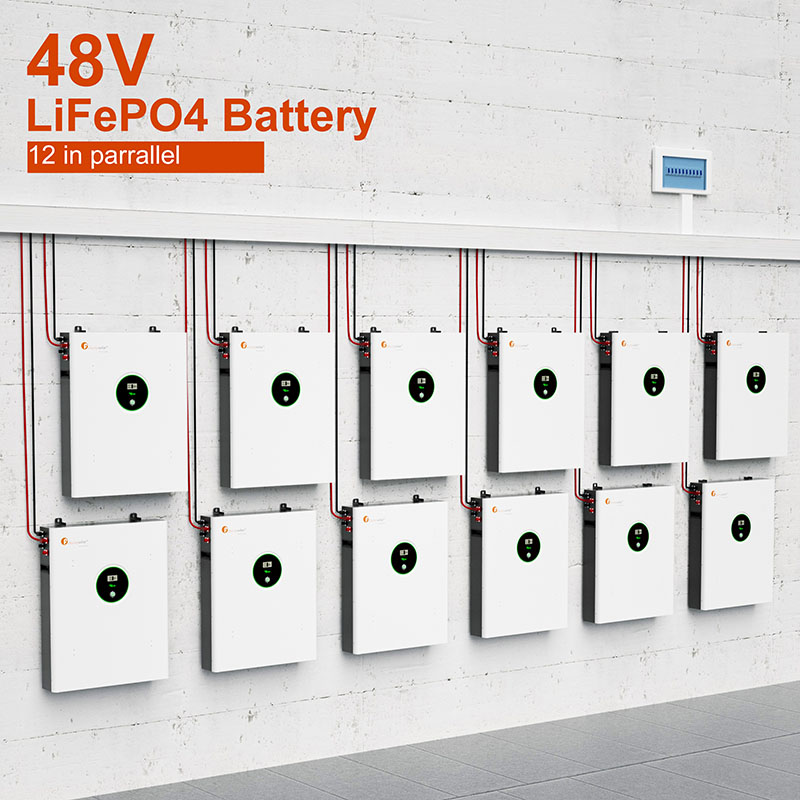

8.Support up to 12 LPBA batteries in parallel.
Data Sheet
|
Model
|
LPBA48200
|
LPBA48170
|
|
Capacity
|
10KWH
|
8700WH
|
|
Voltage
|
48V
|
48V
|
|
Rated voltage
|
51.2V
|
51.2V
|
|
Charge voltage
|
57.6V
|
57.6V
|
|
Discharge Voltage range
|
48-57.6V
|
48-57.6V
|
|
Max charge & discharge current
|
120A@10S
|
120A@10S
|
|
Rated charge & discharge current
|
80A
|
80A
|
|
Modules connection
|
1-12 in parallel
|
|
|
Ingress Protection
|
IP21
|
|
|
Cycle life
|
>6000 @ 25℃
|
|
|
Working Temperature range
|
-10℃-50℃
|
|
|
Net weight
|
70.5KG
|
70.5KG
|
|

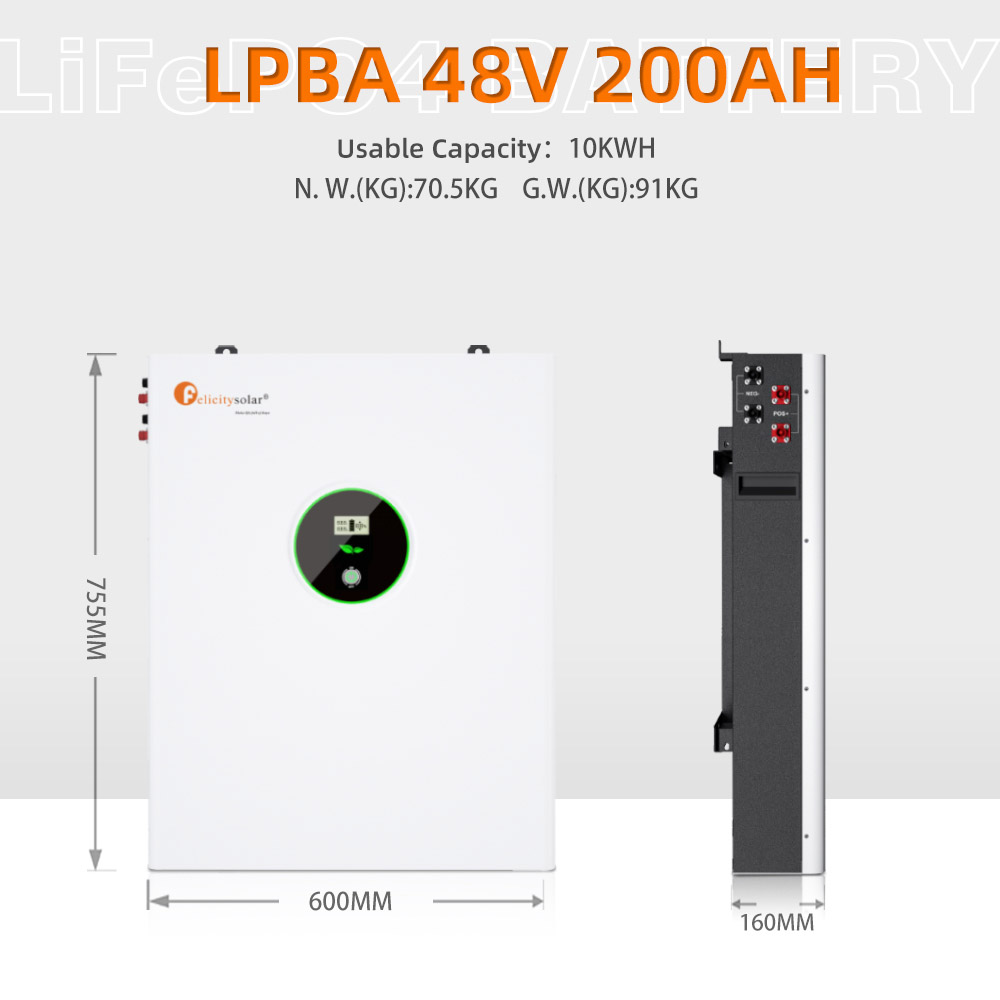

Dimension
|
755*600*160MM
|
755*600*160MM
|
Product Details
The battery design ideas in different application scenarios are different. Common application scenarios include self-generated and self-consumption (high electricity bills or no state subsidies), peak-to-valley electricity prices, and backup power (unstable power grids or important loads).
Self-generated and self-consumption: Choose to select the battery capacity based on the average daily electricity consumption (kWh) of the household (the default photovoltaic system has sufficient electricity).
Peak-valley electricity price: Calculate the maximum demand value of battery capacity according to the total electricity consumption during the peak period. Then according to the capacity of the photovoltaic system and the benefit of the investment, an optimal battery power is found within this range.
Backup power supply: The total power consumption when off-grid and the estimated off-grid time are the most critical parameters. The required battery capacity is finally determined according to the maximum load power and the power consumption during the longest continuous power outage.
Why Choose us?
1, Over 10 years experience in this field
Our company was found in 2007 China, with a miss on to bring bright for all over the world, we have set up lots of branch to develop solar market oversea, including nigeria, Mali, cameroon, Burkina Faso and so on

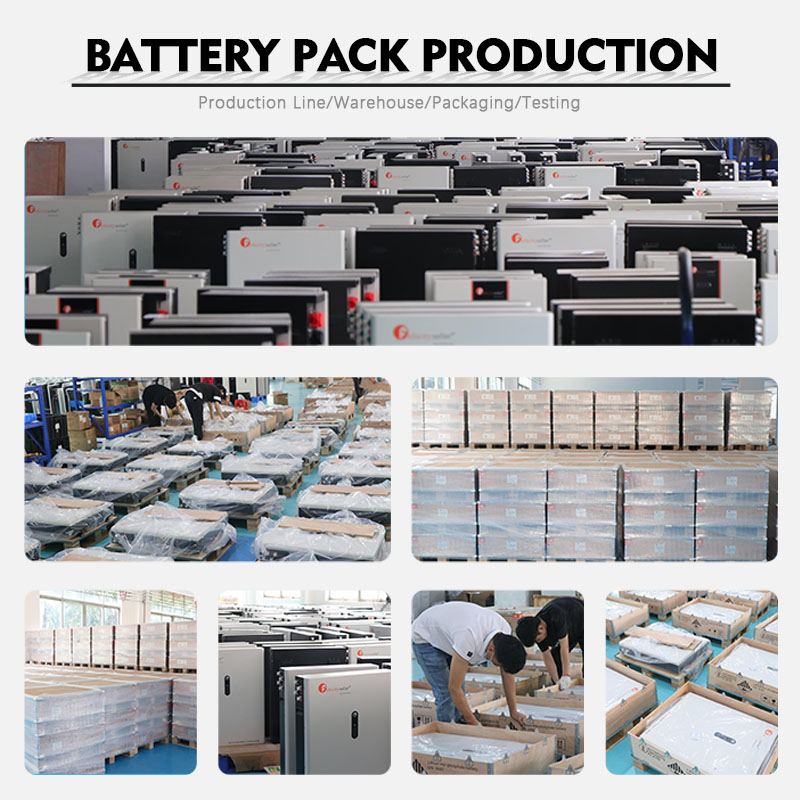

2, Strict Quality Control
