Product Advantages:
1. Plates:1% higher than the average content of tin plate, effectively prevent corrosion and sulfide of the plate.
2. Electrolyte:Silicon-containing salt composition, effectively prevent the battery from dehydration.
3. Paper separator:using domestic top brands, a variety of materials certification.

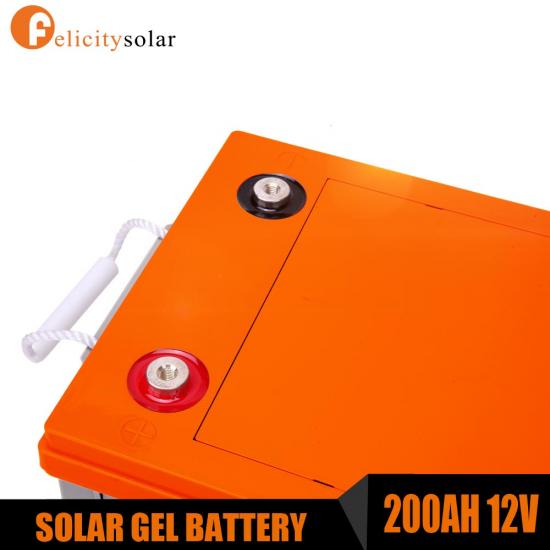

4. Terminals:All copper materials, there are many other battery suppliers using lead terminals.
5. Battery products:enough plate number, enough battery capacity, enough weight.
Data Sheet
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 |
| Capacity | 200Ah @10hr-rate to 1.80V per |
| cell @ 25℃ | |
| Weight | 61.5KG |
| Max Discharge Current | 2000A(5 sec) |
| Internal Resistance | Approx. 4 mΩ |
| Recommended Maximum ChargingCurrent Limit | 60A |
| Operating Temperature Range | Discharge: -20℃~60℃ Charge:0℃~50℃ Storage:-20℃~60℃ |
| Normal Operating Temperature Range | 25℃ ± 5 ℃ |
| Float charging Voltage | 13.6 to 13.8V DC/unit Average at 25℃ |
| Equalization and Cycle Service | 14.4to 14.6V DC/unit Average at 25℃ |
| Self Discharge | GEL batteries can be stored for more than 6 months at 25℃. Self-discharge ratio less than 3% per month at 25℃. Please charge batteries before using. |
| Size | 522*219*240MM |

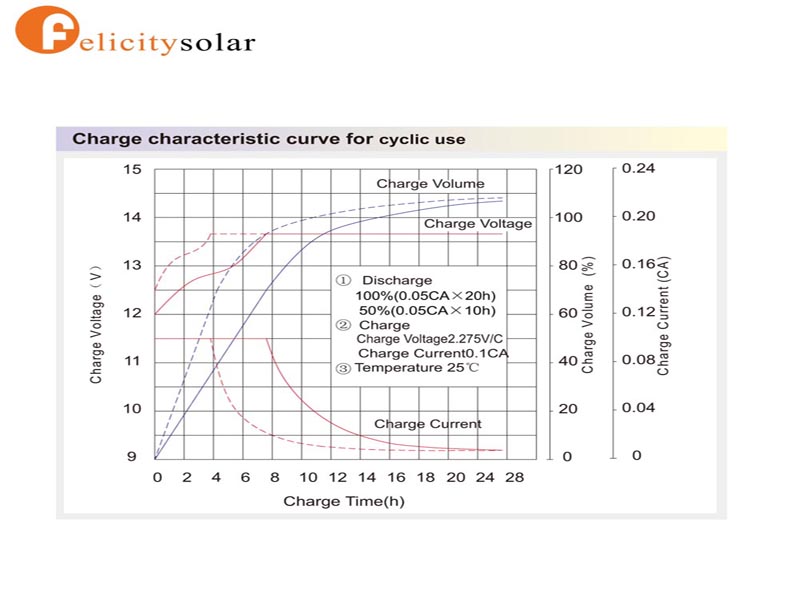

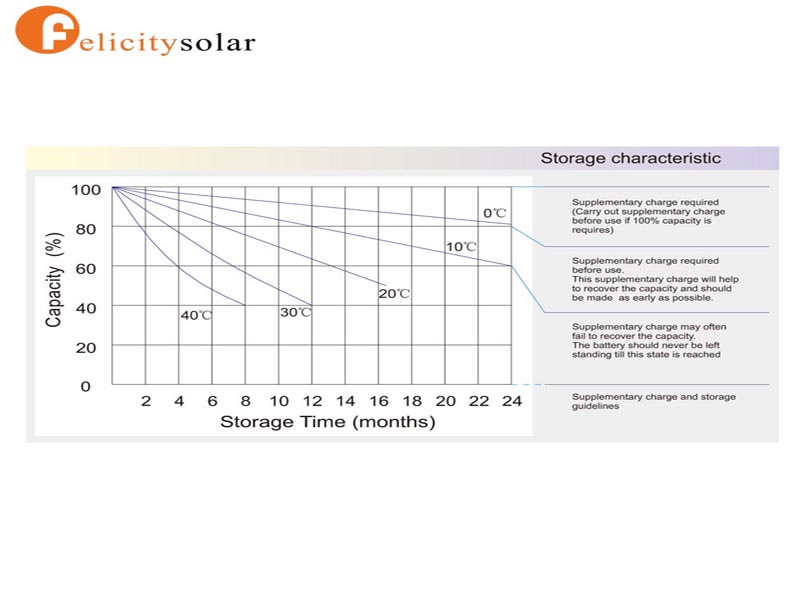

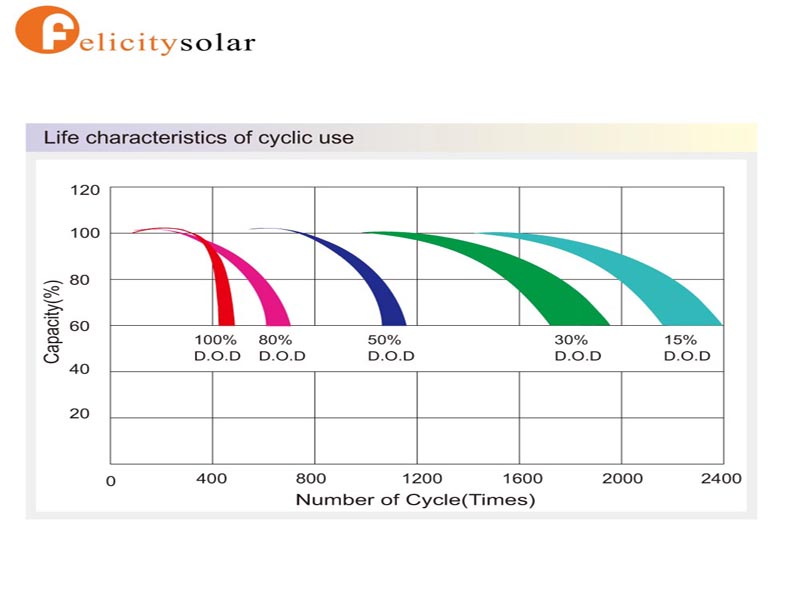

Data Curve

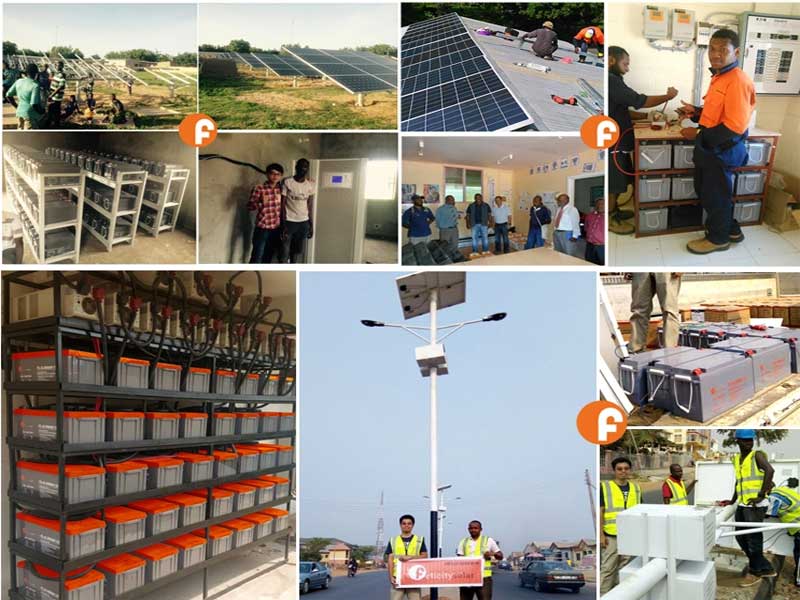

Project Case
Q&A
Q:How about the lifespan of your battery?
A:Pursunsys GEL battery lifespan is more than 2 years.
Q:What kind of your battery?
A:Pursunsys battery is GEL battery, better than lead acid battery.
Q:What should I notice while I'm using the battery?
A:Before you use it, please ensure it's full charging.
Q:When the battery is not using for a long time, what should I do?
A:You should charge it full at first.
Q:What is MOQ of the battery?
A:1pc for sample is ok.
Q:What is the terms of payment?
A:T/T, L/C,western union, paypal or cash; 30% for deposit, the balance 70% before shipment.
Q:What is the warranty?
A:We offer 2 years warranty for the battery.
Q:What is the delivery time?
A:3 work day with stock after receiving the payment. No stock, 25 work days after receiving the payment.
