Key Features
♦Gelled electrolyte made by mixing sulfuric acid with silica fume.
♦The electrolyte is gel like ,immobile and does not leak ,enabling
uniform reaction of each part of the plate .
♦High rate discharge performance due to tight assembly technology
♦Strong heat dissipation and wide operating temperature range
♦Avoid acid mist being separated out , environment friendliness
♦Efficient venting system release excessive gas automatically
Data Sheet
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 |
| Capacity | 150Ah @10hr-rate to 1.80V per |
| cell @ 25℃ | |
| Weight | 42KG |
| Max Discharge Current | 1500A(5 sec) |
| Internal Resistance | Approx. 4.2 mΩ |
| Recommended Maximum ChargingCurrent Limit | 45A |
| Operating Temperature Range | Discharge: -20℃~60℃ Charge:0℃~50℃ Storage:-20℃~60℃ |
| Normal Operating Temperature Range | 25℃ ± 5 ℃ |
| Float charging Voltage | 13.6 to 13.8V DC/unit Average at 25℃ |
| Equalization and Cycle Service | 14.4to 14.6V DC/unit Average at 25℃ |
| Self Discharge | GEL batteries can be stored for more than 6 months at 25℃. Self-discharge ratio less than 3% per month at 25℃. Please charge batteries before using. |

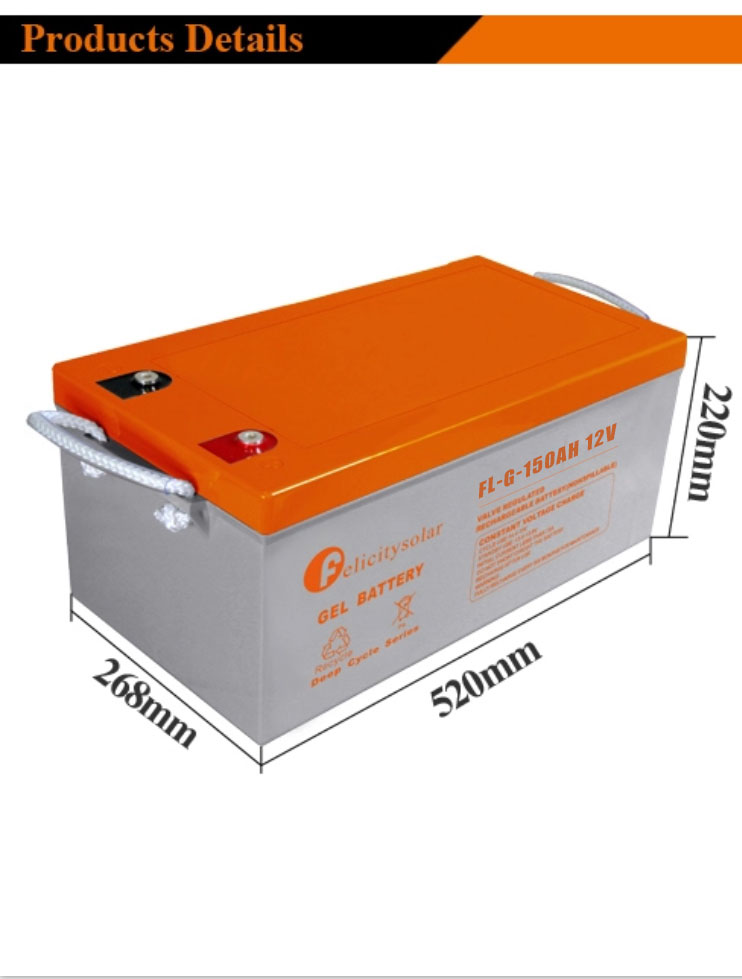

| Size | 484*241*170MM |
Data Curve
Project Case
Q&A
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
Payment
1. Pay through T/T, western union, PayPal…
2. Price term: FOB Shenzhen port, CFR, CIF.
3. The customer is responsible for any tax or bank charges by their countries.
