Product Advantages:
Maintenance-Free ,Absorbent Glass Mat Technology
Low Self Discharge
Long Designed service Life
Excellent Discharge Performance
Environment Friendliness
Wide suitability of ambient temperature range
Data Sheet
|
Model |
FL-GE-100AH |
FL-GE-150AH |
FL-GE-200AH |
|
Cells Per Unit |
6 |
||
|
Voltage Per Unit |
12 |
||
|
Capacity |
100Ah @10hr-rate to 1.80V per cell @ 25℃ |
150Ah @10hr-rate to 1.80V per cell @ 25℃ |
200Ah @10hr-rate to 1.80V per cell @ 25℃ |
|
Weight |
31.0KG |
43.5KG |
61.0KG |
|
Max. Discharge Current |
1000A(5 sec) |
1500A(5 sec) |
1000A(5 sec) |
|
Internal Resistance |
Approx. 5.5mΩ |
Approx. 5.0 mΩ |
Approx. 4.5 mΩ |
|
Recommended Maximum Charging Current Limit |
30A |
45A |
60A |
|
Operating Temperature Range |
Discharge: -20℃~60℃ Charge:0℃~50℃ Storage:-20℃~60℃ |
||
|
Normal Operating Temperature Range |
25℃ ± 5 ℃ |
||
|
Float charging Voltage |
13.6 to 13.8V DC/unit Average at 25℃ |
||
|
Equalization and Cycle Service |
14.4to 14.6V DC/unit Average at 25℃ |
||
|
Self Discharge |
Front triminal batteries can be stored for more than 6 months at 25℃. Self-discharge ratio less than 3% per month at 25℃. Please charge batteries before using. |
||
|
Size |
410*109*293MM |
550*110*290MM |
550*125*317MM |

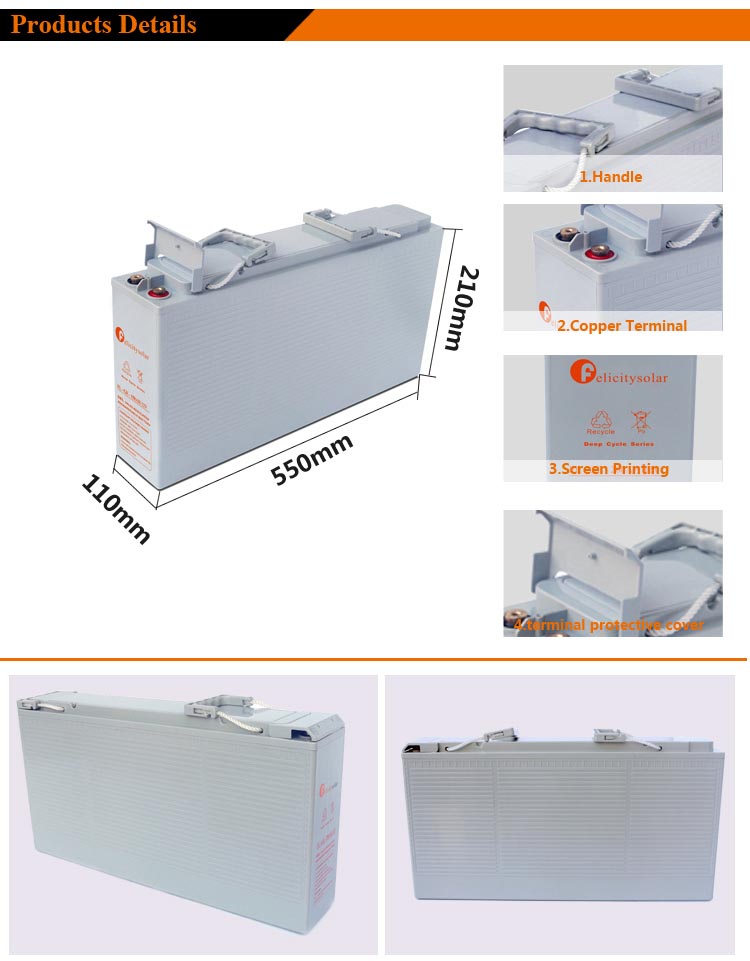

Product Details
