Product Advantages:
1. Maintenance convenient.
2. Non Spillable construction design.
3. Special filter installation for acid fog proof.
4. High quality and high reliability.
5. Super long service life.
6. Special pole sealed technology.
7. Super reliability.
Data Sheet
|
Model |
FL-OPZV-200AH2V |
FL-OPZV-500AH2V |
FL-OPZV-1000AH2V |
FL-OPZV-2500AH2V |
|
Voltage Per Unit |
2 |
|||
|
Capacity |
200Ah @10hr-rate to 1.80V per cell @ 25℃ |
500Ah @10hr-rate to 1.80V per cell @ 25℃ |
1000Ah @10hr-rate to 1.80V per cell @ 25℃ |
2500Ah @10hr-rate to 1.80V per cell @ 25℃ |
|
Weight |
16.8KG |
38.5KG |
77KG |
190KG |
|
Max. Discharge Current |
1000A(5 sec) |
2000A(5 sec) |
3800A(5 sec) |
10000A(5 sec) |
|
Internal Resistance |
Approx.1.0mΩ |
Approx. 0.65 mΩ |
Approx. 0.45 mΩ |
Approx. 0.35mΩ |
|
Recommended Maximum Charging Current Limit |
40A |
100A |
200A |
500A |
|
Operating Temperature Range |
Discharge: -40℃~70℃ Charge:0℃~50℃ Storage:-20℃~60℃ |
|||
|
Normal Operating Temperature Range |
25℃ ± 5 ℃ |
|||
|
Float charging Voltage |
2.25 to 2.3V DC/unit Average at 25℃ |
|||
|
Equalization and Cycle Service |
2.37to 2.40V DC/unit Average at 25℃ |
|||
|
Self Discharge |
Self-discharge ratio less than 2% per month at 25℃. Please charge batteries before using. |
|||
|
Size |
103*206*390MM |
166*206*506MM |
233*210*681MM |
487*212*807MM |

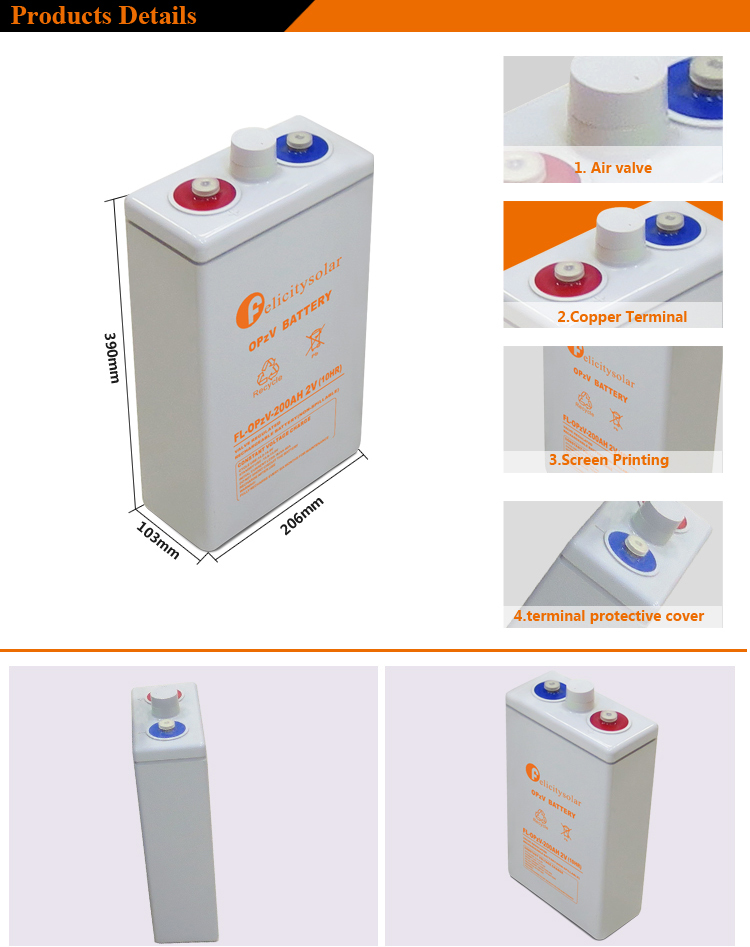

Product Details
Appliance
-Security System
-Control Equipment

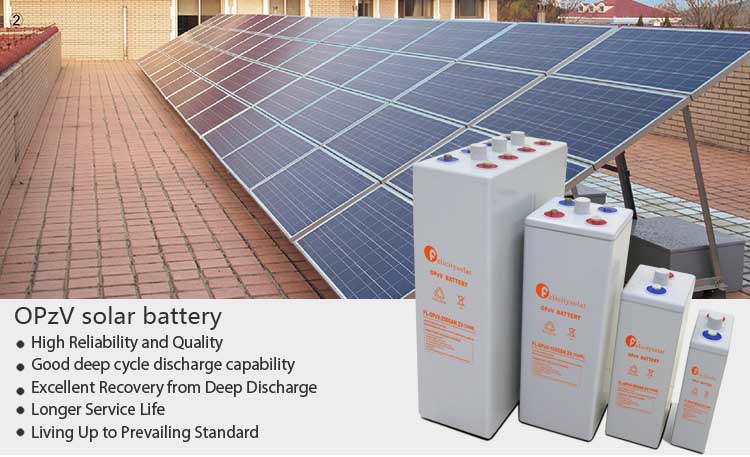

-Photovoltaic System
- Marine/Boat

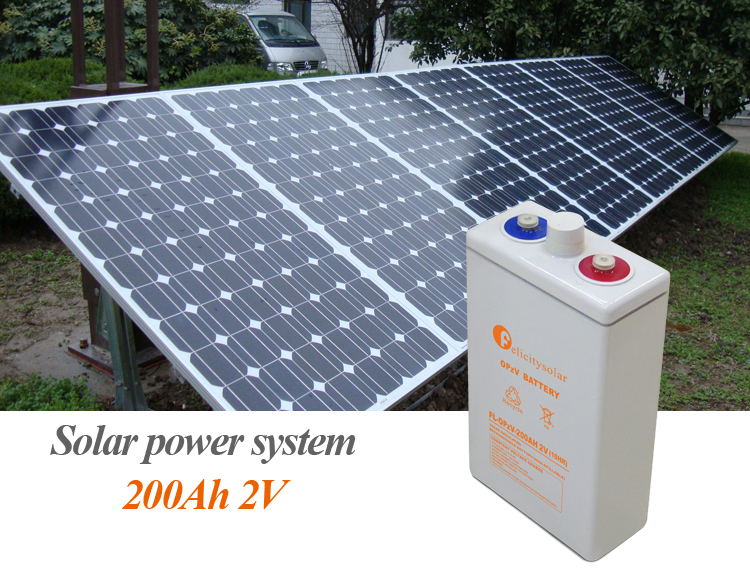

- Solar/Wind power system
- Electronic appliance and other backup power supply
- Telephone and telecommunication equipment
- Uninterruptible power supplies (UPS)
- Emergency lighting equipments
- Telephone switchboard, electric equipments, medical equipments, instruments, and meters
