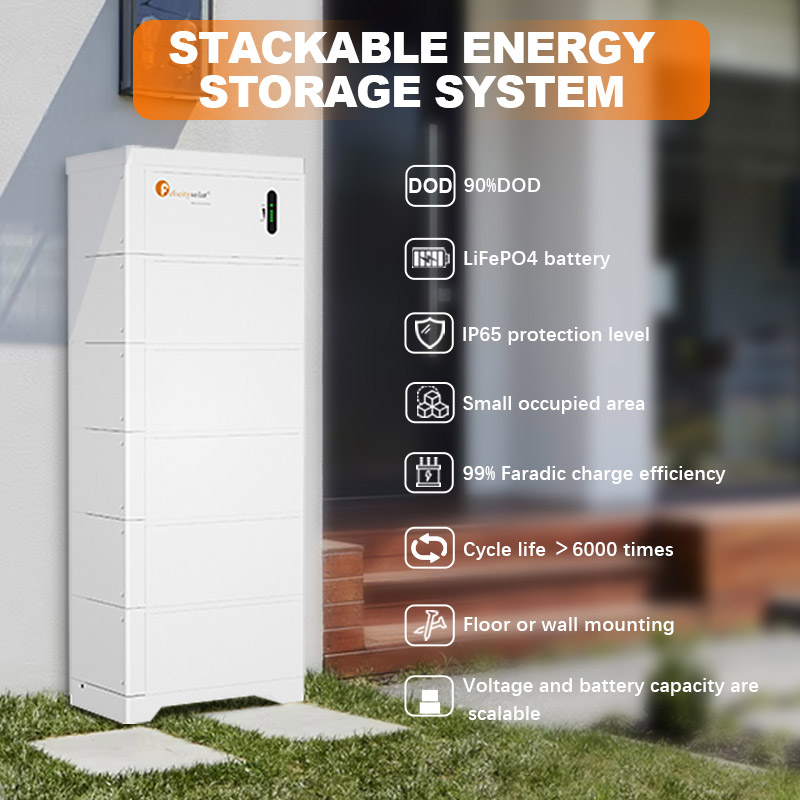

Product Advantages:

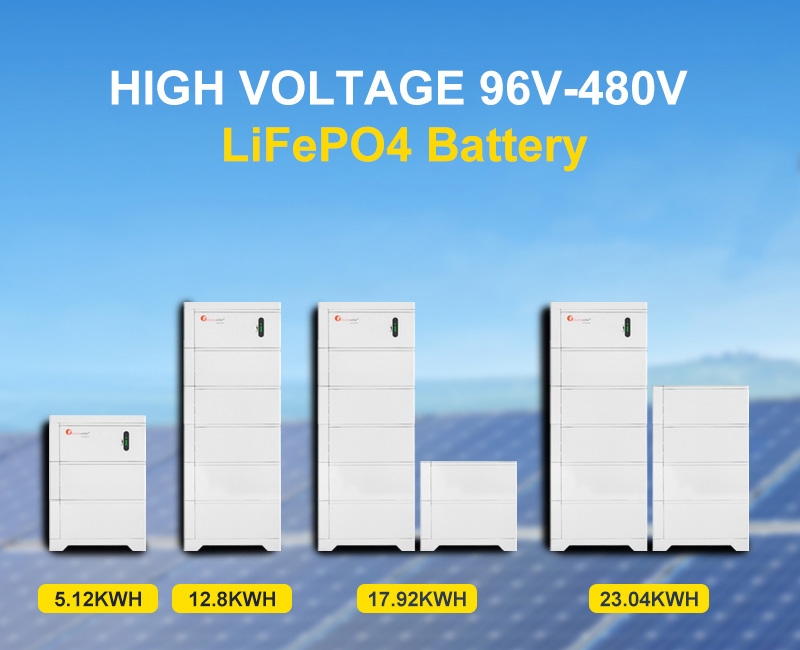

1. 96V-480V High Voltage Battery, Used in large power generation.
2. Long warranty period:5 years.
3. Floor or Power wall Mounting.
4. Modules can be connected in series.
5. Waterproof : IP65 Protection level.
6. Built-in Battery management system(BMS).
7. Has IEC62619, UL1973, UN38.3, CE certificates.
Data Sheet
SPECIFICATIONS FOR BATTERY SYSTEM
BATTERY SYSTEM
LPBA-5.1-OH
LPBA-7.7-OH
LPBA-10.2-OH
LPBA-12.8-OH
LPBA-15.4-OH
Battery Module
LPBA48050-OH(2.56kwh,51.2v)
Number of Modules
2
3
4
5
6
Total Energy [Kwh]
5.12
7.68
10.24
12.8
15.36
Usable Energy [kWh] (90%DOD)
4.6
6.9
9.2
11.5
13.8
Nominal Voltage [V]
102.4
153.6
204.8
256
307.2
MAX. Charge Voltage [V]
115.2
172.8
230.4
288
345.6
MIN. Discharge Voltage [V]
96
144
192
240
288
Weight [Kg]
73.5
104
134.5
165
195.5
Battery Module
LPBA-17.9-OH
LPBA-20.5-OH
LPBA-23.0-OH
LPBA-25.6-OH
Number of Modules
7
8
9
10
Total Energy [KWh]
17.92
20.48
23.04
25.6
Usable Energy [kWh] (90%DOD)
16.1
18.4
20.7
23
Nominal Voltage [V]
358.4
409.6
460.8
512
MAX. Charge Voltage [V]
403.2
460.8
518.4
576
MIN. Discharge Voltage [V]
336
384
432
480
Weight [Kg]
226
256.5
287
317.5

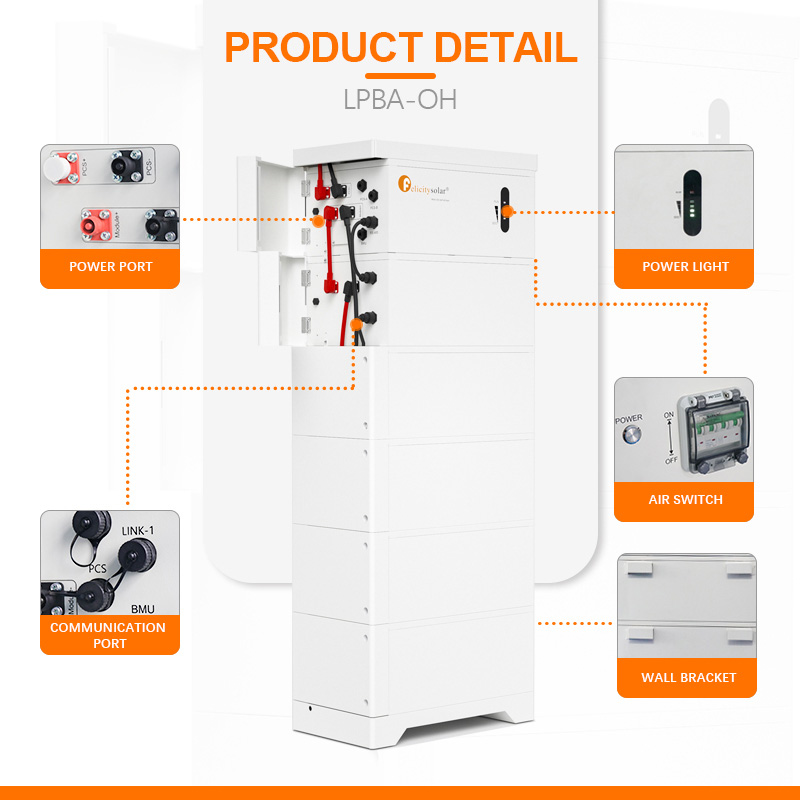

Product Details

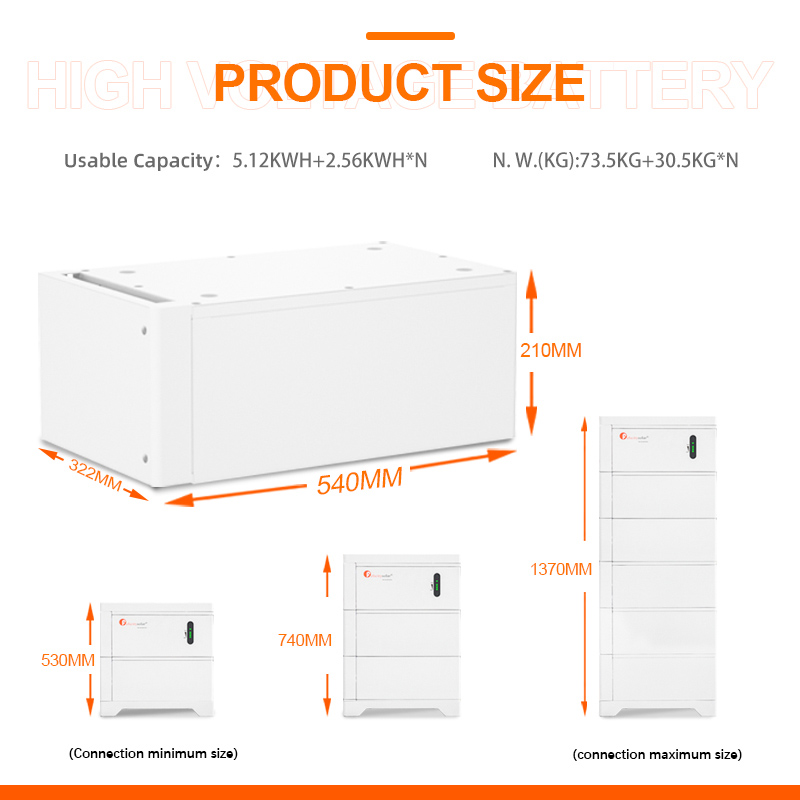

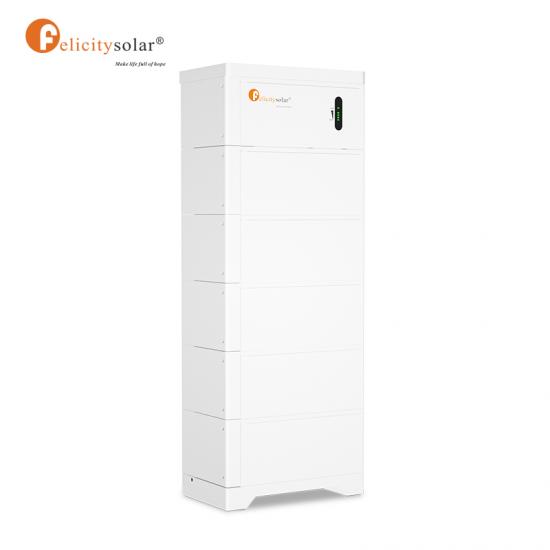

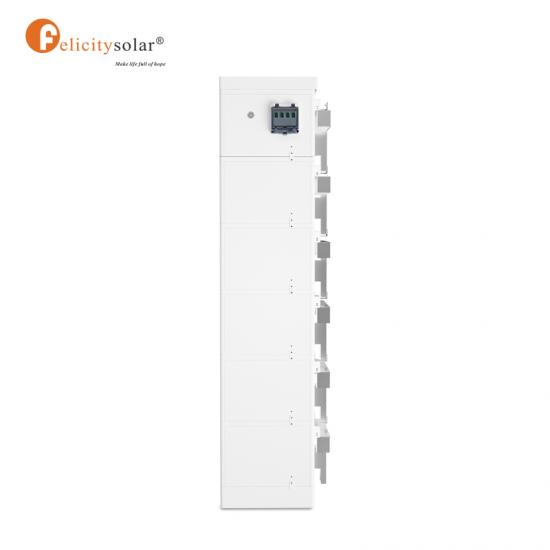

Pursunsys's LPBA48050-OH high-voltage lithium battery has a total of 2~10 cells, each with a different voltage range and capacity, the highest voltage can reach 480V, which can be used for power generation in some factories and school dormitory power consumption, a module battery The battery capacity is about 2.56KWH, and each additional module battery increases the weight of 30.5KG, and if a battery in a certain link fails, we can replace a single module.
