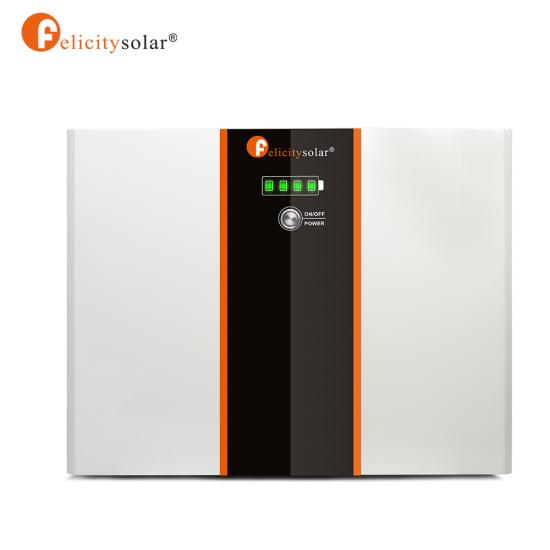

Product Advantages:
The battery system main using Solar power system for Family house. It also have a with to controller the
battery easily and protect our Household application timely.
Feature:
Data Sheet
Capacity
5KWH
Voltage
24V
Rated Voltage
25.6V
Charge Voltage
28.8V
Discharge Voltage Range
24-28.8v
MAX.Charge&Discharge Current
120A
Rated Charge&Discharge Current
60A
MAX.Output Power
2500W
Rated Output Power
1250W
DOD
0.9
Modules Connection
1-6 in parallel
Communication
CAN & RS485
Ingress Protection
IP21
Cycle Life
>3000,@25°C
Working Temperature Range
-10-50°C
Net Weight(kg)
37.3kg
Gross Weight(kg)
39.8kg
Dimension(MM)
485*370*240mm
Product Details
INTRODUCTION TO PARALLEL CONNECTION:
Note: One group of LPBT24200 can be stacked up to 4 layers, and up to 6 in parallel connection One group of LPBT48200 can be stacked up to 2 layers, and up to 6 in parallel connection.

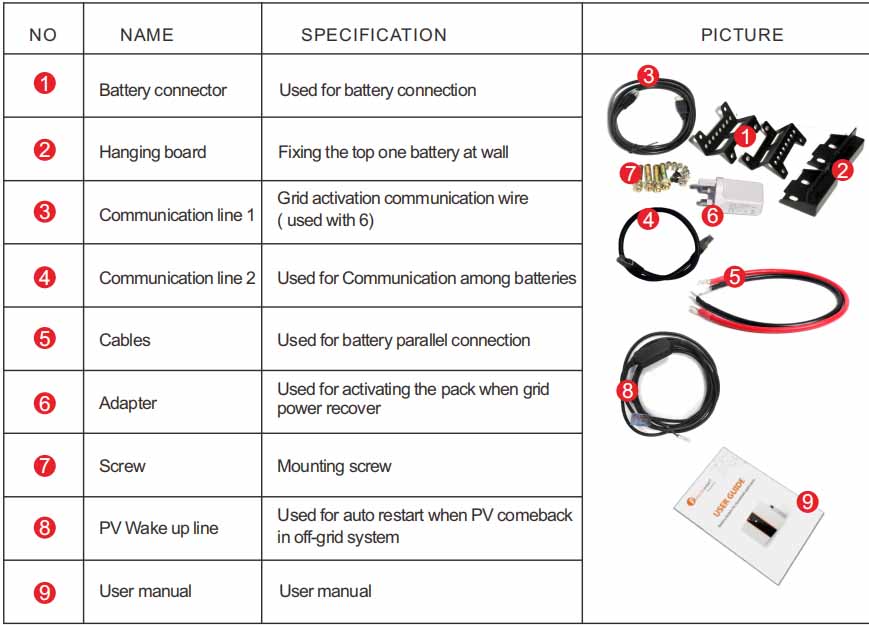

Unpacking and Inspection
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You
should have received the following items inside of package.

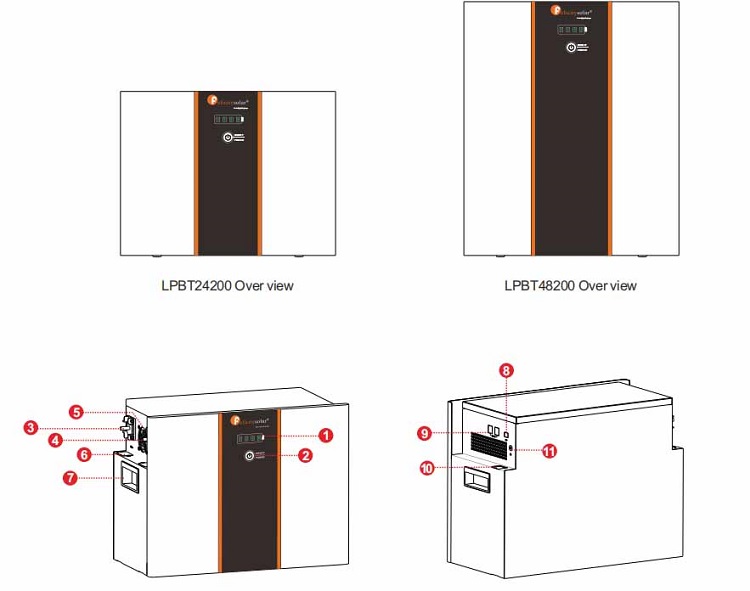

1. LED display 2. Power On/Charging indicator 3.Battery Negative 4. Battery Positive + 5. Fan
6. Parallel threading hole 7.Handle 8. SW 9. RS232 Communication port 10.Outlet 11. Earth wire
