Product Advantages:
1. Iron Phosphate-lithium power battery
2. Long warranty period: 5years
3. >6000 cycles Reliable Performance
4. Support 6PCS LPBF in parallel mode for expansion.

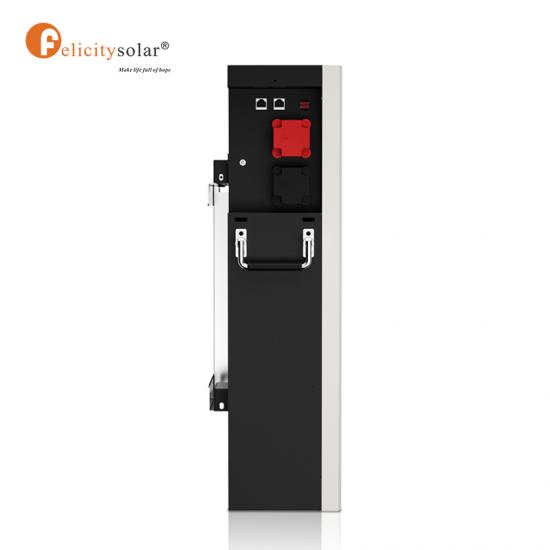

5. Convenient CAN&RS485 Communication

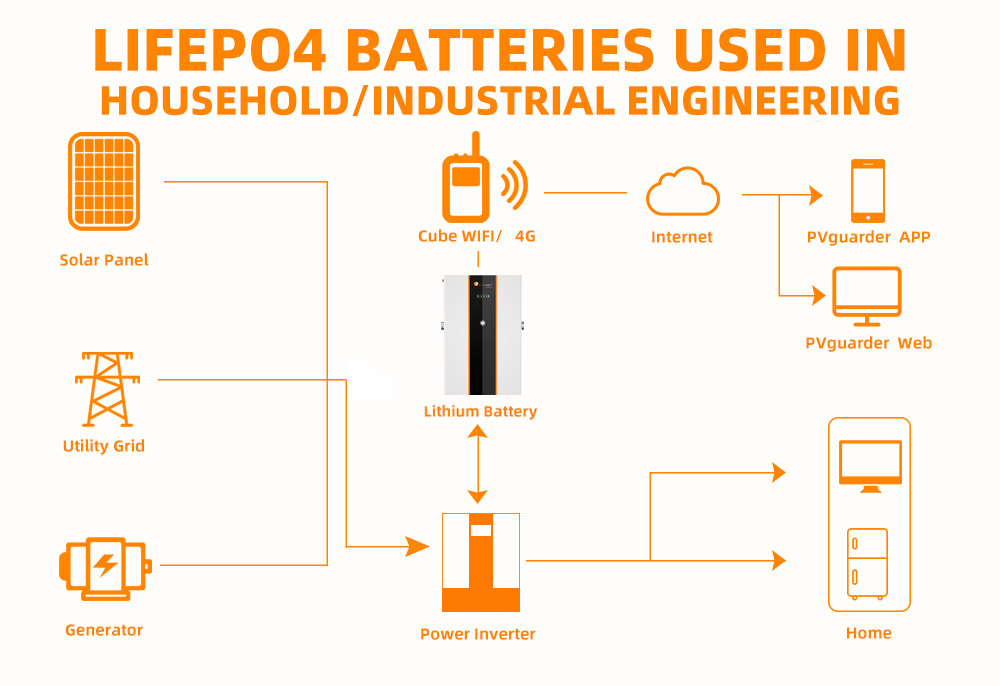

6. Photovoltaic system:this battery pack is designed for household photovoltaic systems.
Data Sheet
|
Model
|
LPBF48150-P
|
LPBF48200-P
|
|
Capacity
|
7.2KWH
|
10KWH
|
|
Voltage
|
48V
|
48V
|
|
Rated voltage
|
51.2V
|
51.2V
|
|
Charge voltage
|
57.6V
|
57.6V
|
|
Discharge Voltage range
|
48-57.6V
|
48-57.6V
|
|
Max charge & discharge current
|
120A@30S
|
120A@30S
|
|
Rated charge current
|
80A
|
50A
|
|
Modules connection
|
1-6 in parallel
|
|
|
Ingress Protection
|
IP21
|
|
|
Cycle life
|
>6000 @ 25℃
|
|
|
Working Temperature range
|
-10℃-50℃
|
|
|
Net weight
|
56KG
|
62KG
|
|

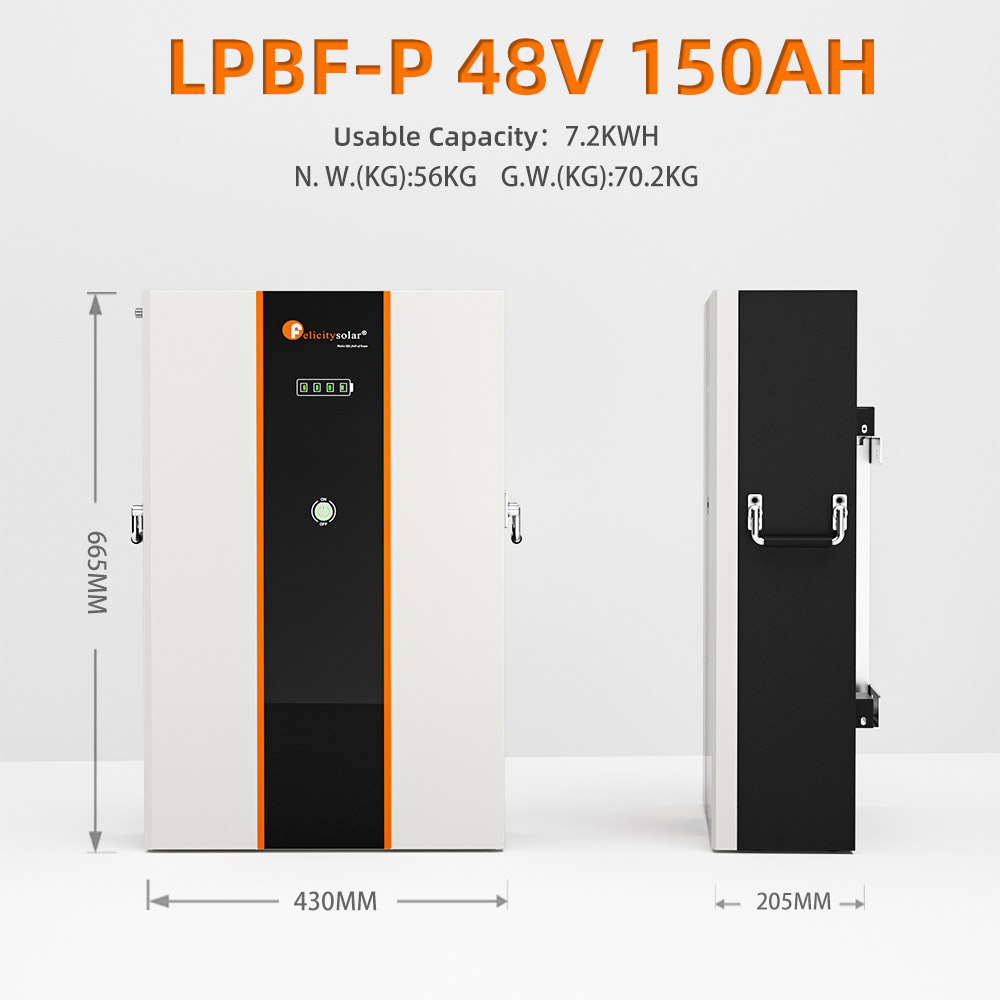

Dimension
|
665*430*205MM
|
697*552*352MM
|
Product Details

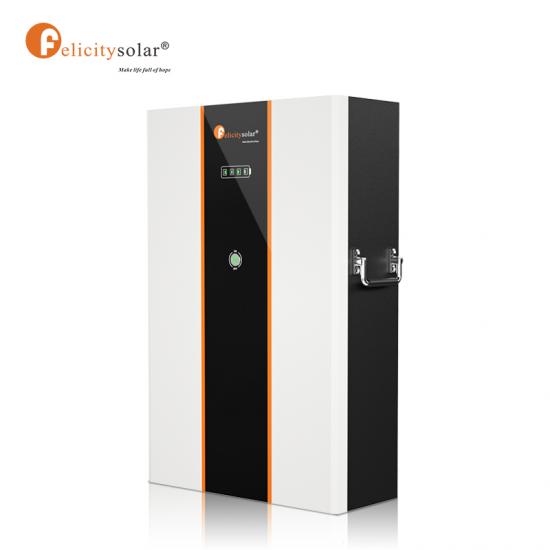

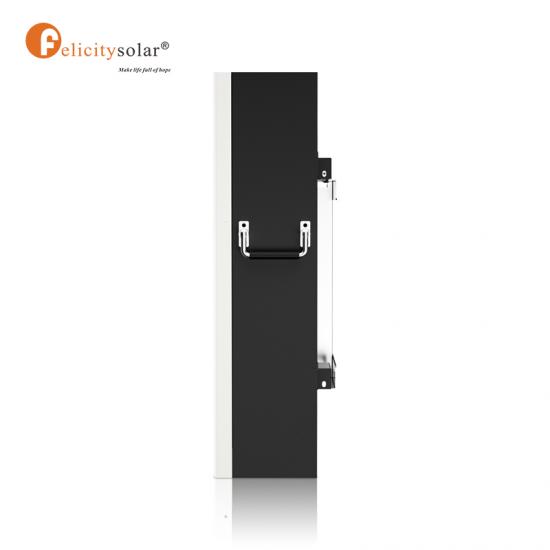

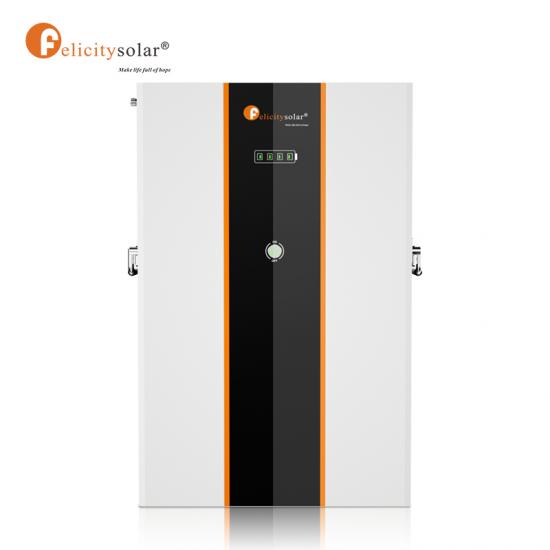

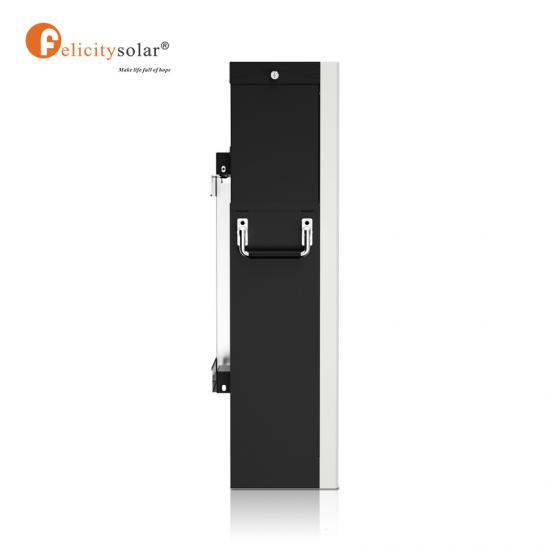

About 48V 150ah Energy Storage Lithium Battery
Premium Quality and Total Protection: Pursunsys Rechargeable Prismatic Batteries, LiFePO4 and BMS with the most advanced high end chemistry and safety measures. Our LiFePO4 batteries are 75% lighter than lead-acid/AGM batteries with significantly improved capacity and performance.
Customer service: We have 20 branches overseas (for example: Lebanon, Dubai, Germany, Nigeria and other countries), support on-site maintenance services, 24-hour online design services.
Features: Pursunsys battery is rechargeable, long lasting, fast charging, ultra light, efficient and easy to install. 16S 150Ah Daly BMS has preset low temperature cut-off and can connect up to 6 batteries in parallel. It is suitable for RV, solar, marine and other applications. It supports inverters of many famous brands such as Pursunsys, deye, growatt, etc.
100% Satisfaction Guarantee: Manufactured with Lithium Iron Phosphate batteries, designed to provide superior performance, a great alternative to AGM and lead acid batteries with 8 to 10 times longer life. Have confidence in our premium batteries.
Specifications: Our 48V lithium battery can last for more than 6000 times. Nominal voltage 48V, capacity 150Ah, voltage range 48V-57.6V, support CAN&RS485 communication, more than 95% DOD.
FEEDBACK
Why Choose us?
Q1: Are you a manufacturing factory?
A1: Yes, We are a lithium battery manufacturer from China since 2007. You are welcome to visit our factory and production process. If the quantity is suitable, we accept OEM/ODM.
Q2: What’s your product range?
A2: We focus on Lithium-ion battery, Lithium iron phosphate (LiFePO4) battery for residential and commercial energy storage system, UPS, RVs, etc.
Q3: What is the production time for your lithium battery?
A3: The sample delivery time is about 5-10 days. The bulk order delivery time is about 25-35days according to quantity.
Q4: Can I buy one or two units for the sample first?
A4: Yes. Samples are welcome for the LiFePO4 battery. Please contact our sales manager to place the order.
Q5: How do you guarantee the quality?
A5: Always a pre-production sample before mass production.
Always final Inspection before shipment.
Q6: Why we can choose you?
A6: Reliable-- Our certifications like MSDS, UN38.3,CE is our commitment to quality and safety for our lithium batteries.
Professional--We provide battery solutions and technical support for more than 10 years.
Factory-- We have factory, so have competitive price.
