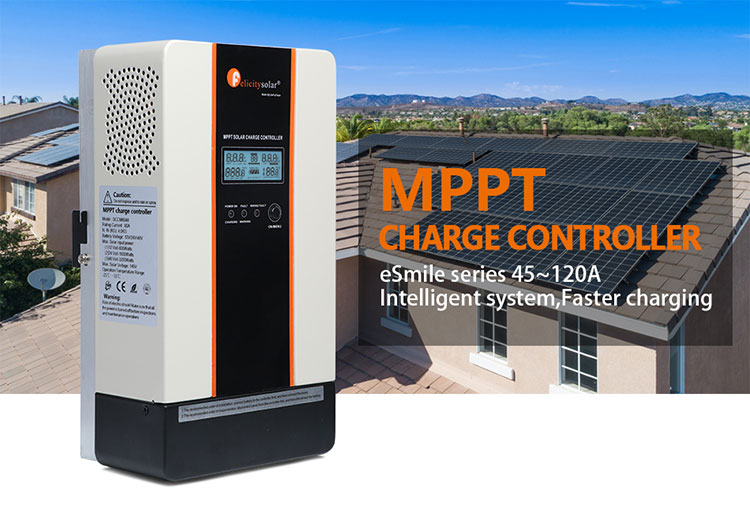

Products Feature:
1. Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
2. Compatible for PV systems in 12V, 24V or 48V
3. Three-stage charging optimizes battery performance
4. Maximum charging current up to 60A
5. Maximum efficiency up to 98%
Data Sheet
| Model | SCCM6048 | |||||
| Maximum Solar input Voltage | 145V | |||||
| Nominal System Voltage | 12,24,48VDC(Auto detection) | |||||
| Maximum Battery Current | 45A | |||||
| DC Array MPPT Volage Range | 12VDC/24VDC/48VDC | |||||
| PV Array MPPT Volage Range | 15-115VDC/30-115VDC-60-115VDC | |||||
| Maxinmum input Power | 12Volt-825Watts | |||||
| 24Volt-1650Watts | ||||||
| 48Volt-3300Watts | ||||||
| Charging Algorithm | 3-Step | |||||
| Charging stages | Bulk,Absorption,Float Bulk,Absorption,Float | |||||
| Temperature compensation coefficient | -5mV/℃/cell(25℃ref.) -5mV/℃/cell(25℃ref.) | |||||
| Temperature compensation range | 0℃ to +50℃ 0℃ to +50℃ | |||||
| Temperature compensated set points | Absorption,Float Absorption,Float | |||||
| Charging Set points | Absorption Stage Absorption Stage Float Stage | |||||
| Flooded Battery | 14.6V/29.2V/58.4V 14.6V/29.2V/58.4V 13.5V/27V/54V | |||||
| ARG/Gel Battery（Default) | 14.1V/28.2V/56.4V 14.1V/28.2V/56.4V 13.5V/27V/54V | |||||
| Overcharge voltage | 15V/30V/60V 15V/30V/60V | |||||
| Overcharge restart voltage | 14.5V/29V/58V 14.5V/29V/58V | |||||
| Battery discharge voltage | 8.5V/17V/34V 8.5V/17V/34V | |||||
| Battery overdischarge voltage | 9V/18V/36V 9V/18V/36V | |||||
| Product size(H*W*D,mm) | 283*160*105 mm | |||||
| Product weight(Kg) | 4.0kg | |||||
| Ambient Temperature Range | 0℃ to +55℃ | |||||
| Storage Temperature | -40℃ to 75℃ | |||||
| Humidity | 0%-90%RH(No condensing) | |||||
| Enclosure | IP31(indoor&vented) | |||||
