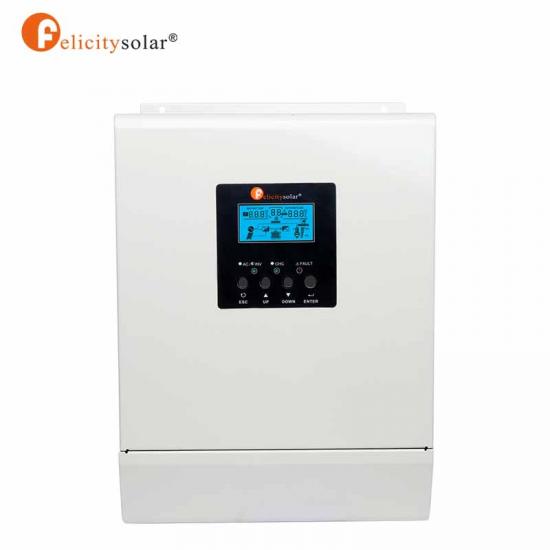

NOT ON SELL NOW.We have launched newer products to replace it.IVEM3024
Product Advantages:
1. Remote control and BTS terminal
2. Intelligent charging control
3. Bypass with AVR function (optional)
4. Maximum charging current to 85A (depend on capacity and battery voltage )
5. SNMP card and RS232 communication (optional)
6. Input voltage range and battery voltage protect can setting through DIP switch
7. Battery type and charge current can be adjusted
8. Charge and output priority setting through front button
Data Sheet
Model
FL-IVCM3024
Rated power
3KVA/2400W
Input
Voltage
230V
Selectable Voltage Range
170-280 VAC ( ) 90-280 VAC ( Appliances )
Frequency Range
50 Hz/60 Hz (Auto sensing)
Battery Voltage
24VDC
Output
AC Voltage Regulation
230VAC ± 5%
Efficiency(Peak)
>95% ( Rated R load, battery full charged )
Transfer time
10ms typical (UPS); 20ms typical (Appliances)
Waveform
Pure sine wave
SOLAR CHARGER&AC CHARGER
Maximum Solar Charge Current
60A
Maximum AC Charge Current
60A
Maximum Charge Current
120A
Rated Power
1500W
Max. PV Circuit Voltage
145Vdc max
PV MPPT Volt Range
30-115V dc
Min. Battery Volt for PV Charge
17Vdc
OPERATING ENVIRONMENT
Storage Temperature
0°C - 55°C
Humidity
-15°C - 60°C
PHYSICAL
Dimension
136X295X420
Net Weight
12KG

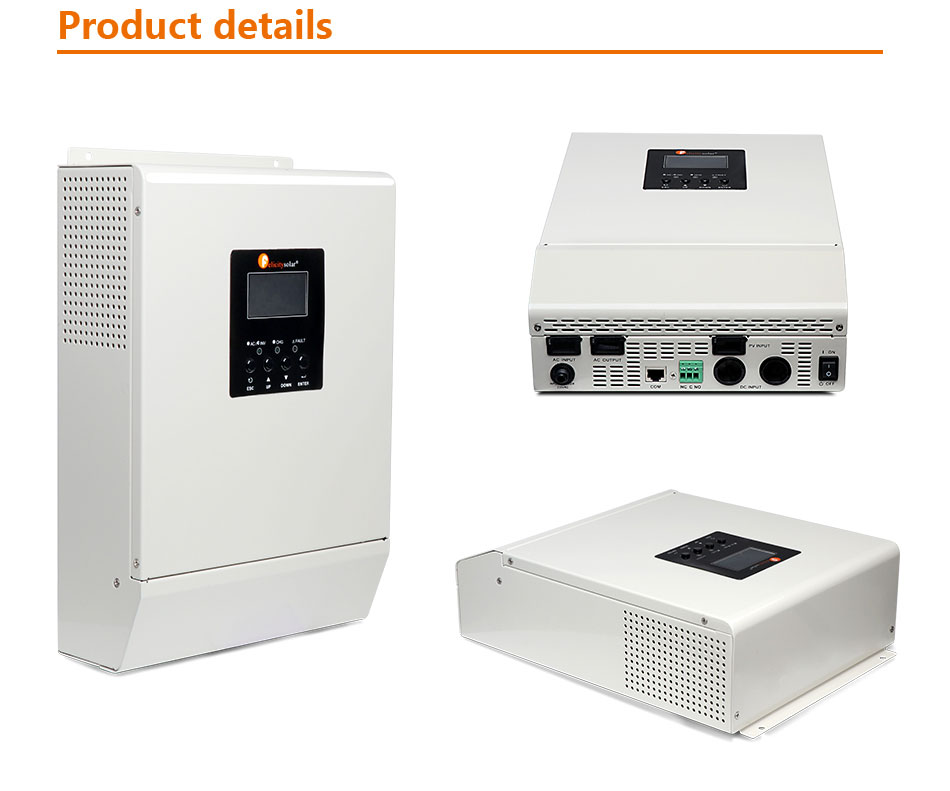

Product Details

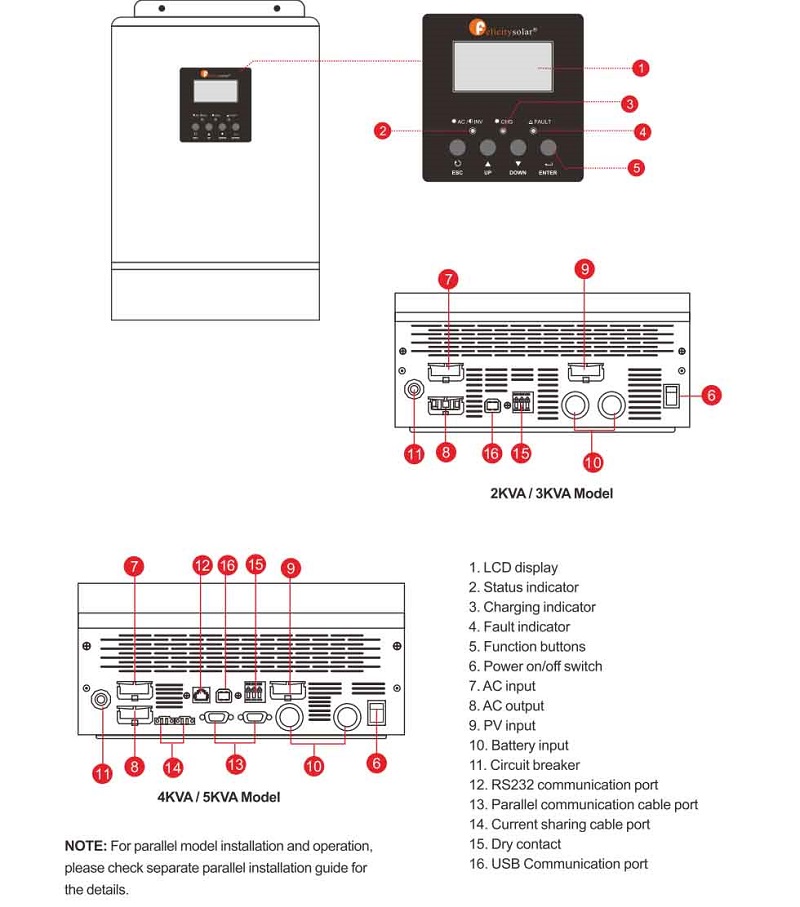

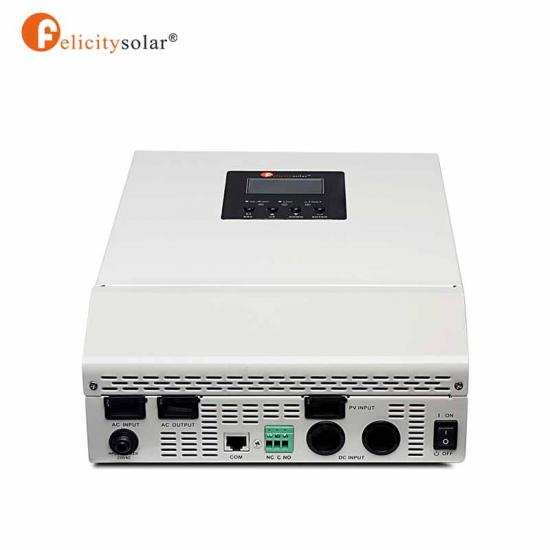

Connection Overview

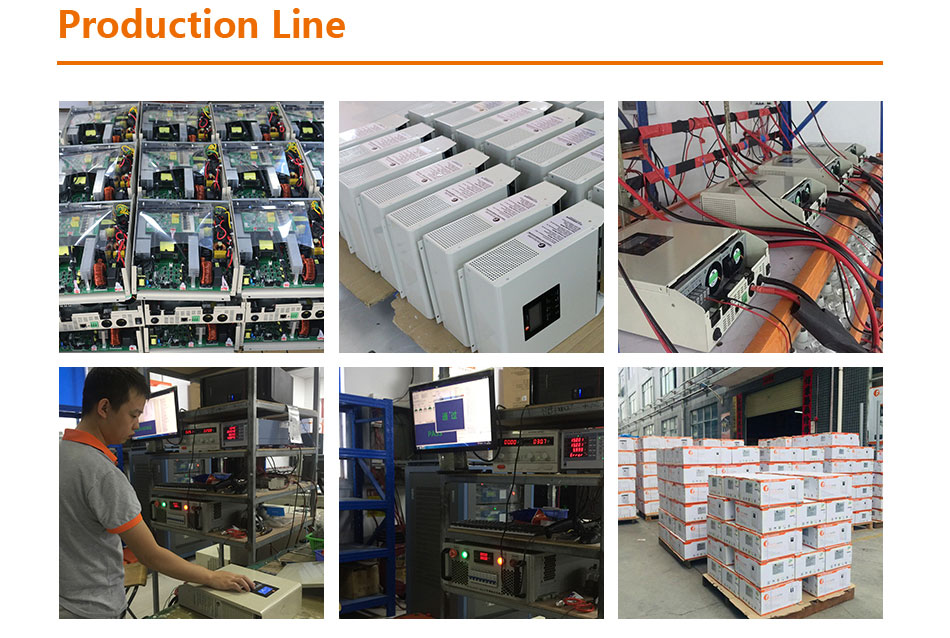

Production Line
Payment Term
We support wide range of secure & reliable payment methods like T/T, L/C, West Union, E-checking, Paypal and so on. Please choose your preferred payment method from those listed below.
| yment Terms | T/T or Cash | EXW | 30% TT in advance, pay the balance before shipment |
| FOB | |||
| CFR (C&F) | 30% TT in advance, pay the balance against copy of B/L | ||
| CIF | |||
| L/C | For the amount more than US$90,000 payment, we can accept L/C | ||
| Paypal | For the amount less than US$2,000 payment, we can accept Paypal , West Union or MoneyGram | ||
| West Union | |||
| MoneyGram | |||
We also supply 1Kva 1000vaHybrid Inverter for you choose,if you interested in this product,please feel free to contact us!
RFQ
Q1.How do you provide your after sale service？
A:Professional after-sales team will help you in china and other country's agent, If you have any questions about our product, please contact us, we will solve your problem based on your situation.
Q2.Can you provide OEM, ODM service?
A: OEM and ODM service is available.
Q3.what kind of certificate you have ?
A: ISO, CE, ETL, Thayer, UL .
