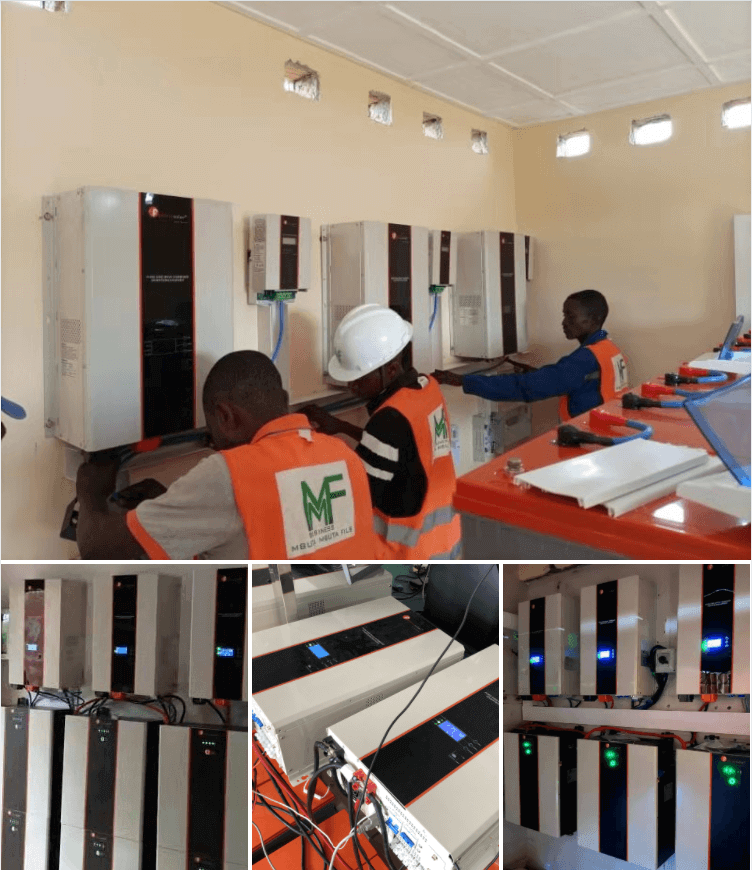

Solar inverter, or converter, or PV inverter converts the variable DC output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be off-grid electrical network. It is a critical balance of system–component in a solar power system, allowing the use of ordinary AC-powered equipment
Advantage
●Bypass charging function: when the unit off, it can be activated with bypass output
and can charge the battery.
●High charging current, max charging current can be set to 80A for 10048,Easy and
clear to set 0A, 10A,20A,30A, 40A,50A,60A,70A,80A.
●Wide range of AC input voltage: the range of AC input voltage is 90-280V. It can be
better compatible with generator working. It is rare to have wide range input voltage for
the power frequency inverter.
●Electricity and battery priority is optional: customer can choose Electricity or battery priority
according to their needs.
Data Sheet
| Model | IVPL10048 | ||
| DC Input Voltage | 48V | ||
| Rated output power(VA) | 10000VA 8000W | ||
| Rated output power(W) | 8000W | ||
| Input voltage waveform | Sine(public facility or generator) | ||
| Rated input voltage | 220vac | ||
| Grid low voltage | 90Vac±7Vac | ||
| Grid low voltagerecovery voltage | 100Vac±7Vac | ||
| Grid high voltage | 280Vac±7Vac | ||
| Grid high voltage recovery voltage | 270Vac±7Vac | ||
| Max input voltage | 280Vrms | ||
| Rated input frequency | 50Hz/60Hz | ||
| Grid underfrequency | 40±1Hz | ||
| Grid underfrequency recovery | 42±1Hz | ||
| Grid overfrequency | 65±1Hz | ||
| Grid overfrequency recovery | 43±1Hz | ||
| Output waveform | Synchronize with input voltage | ||
| Overload protection | Air switch protection | ||
| Output short circuit protection | Air switch protection | ||
| Efficiency(grid) | ≥95% | ||
| Switching time(AC TO DC) | 15ms Typical value | ||
| Switching time(DC TO AC) | 15ms Typical value/30ms special value | ||
| Through battery free | NO | ||
| Grid max bypass current | 60A | ||
| Charging parameter | |||
| Rated input voltage | 220Vac | ||
| Input voltage range | 90-280Vac | ||
| Rated voltage output | Depending on batty type | ||
| Max charging current | 80A | ||
| Adjustable charging current range | 0-80A | ||
| Initial voltage of the battery | Breaker | ||
| Charging short circuit current | 63A | ||
| Breaker size | Dependent on battery type or self-defined | ||
| Overcharge protection | Yes | ||

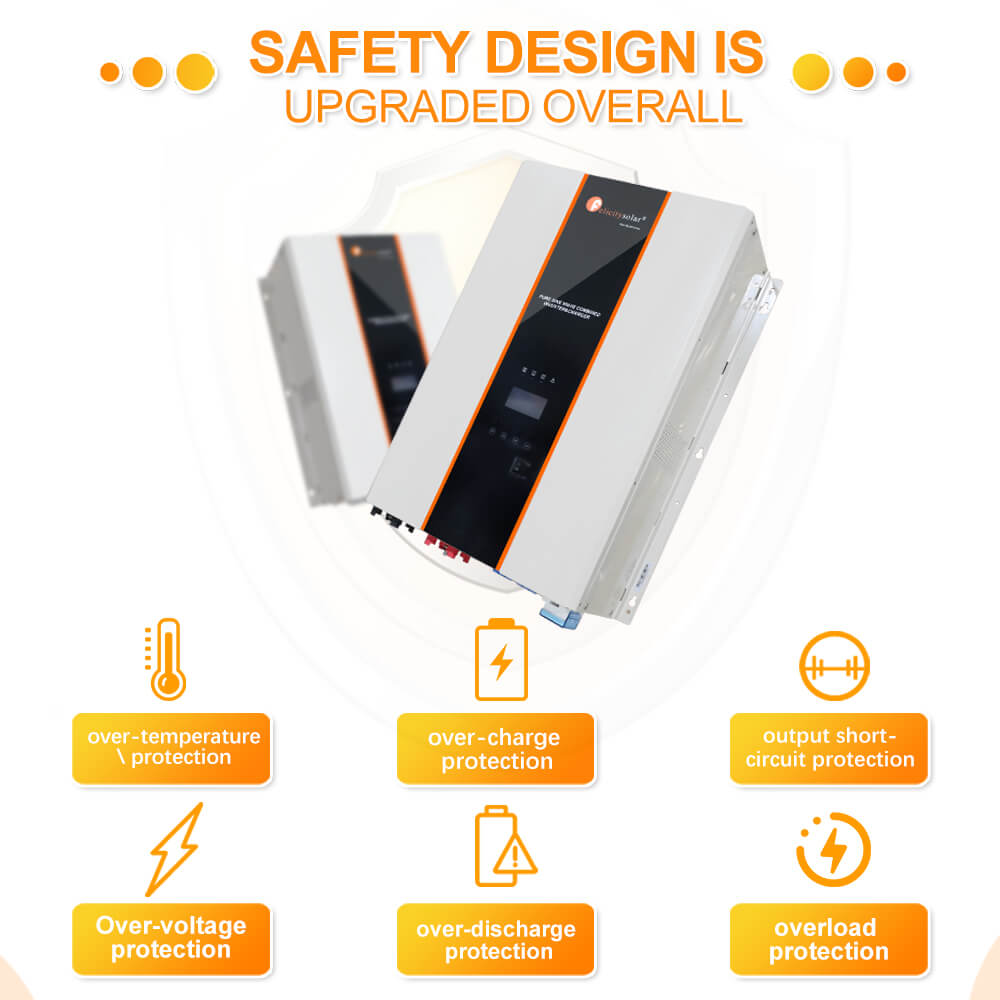

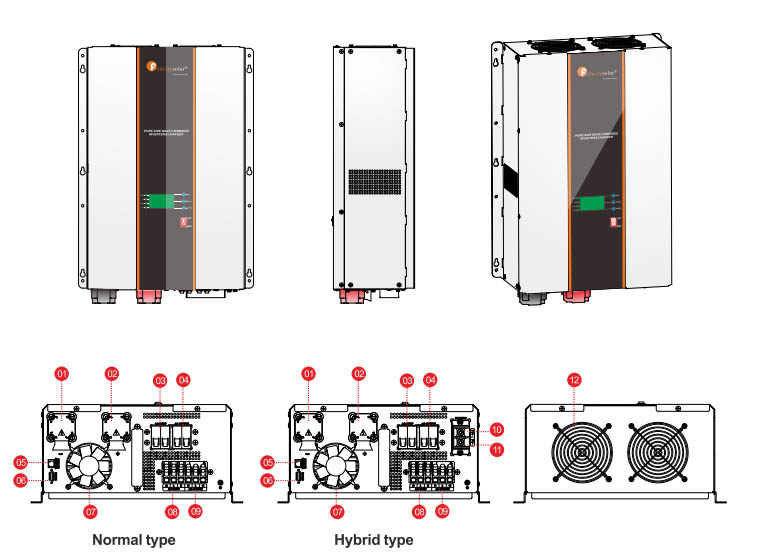

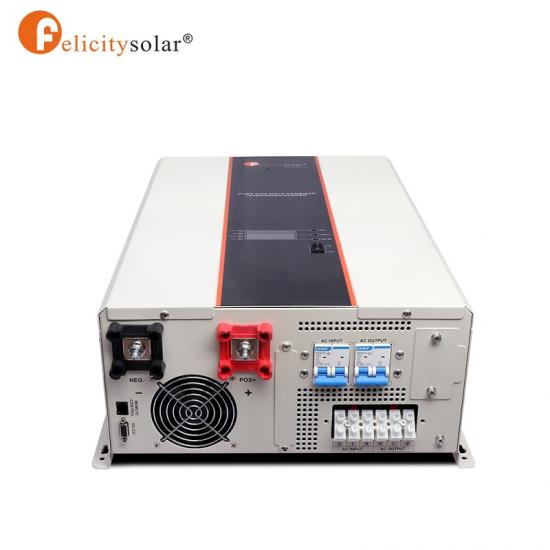

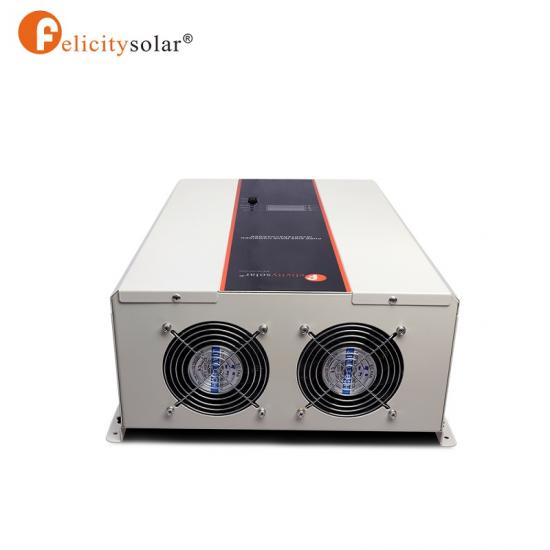

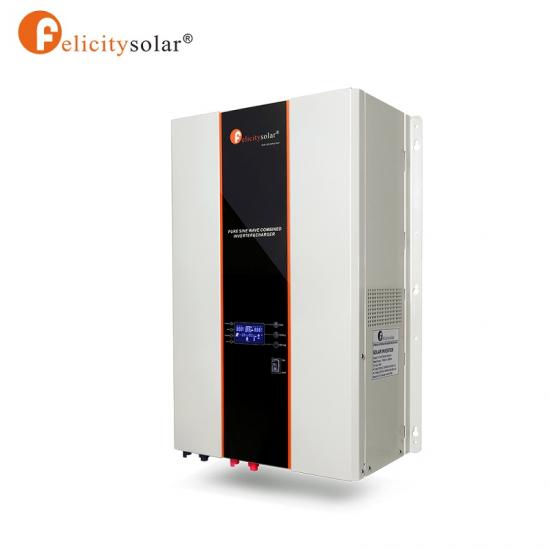

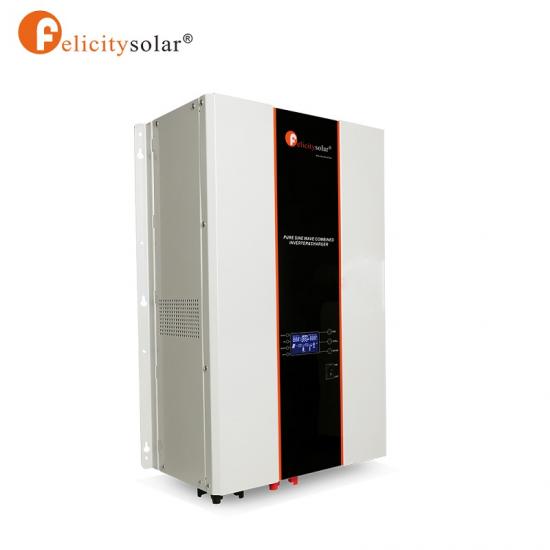

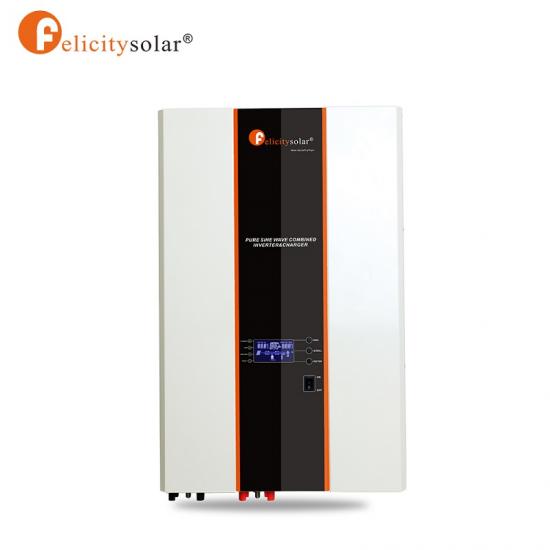

PRODUCT VIEW
1. Battery negative terminal
2. Battery positive terminal
3. AC Input breaker
4. AC Output breaker
5. Remote control
6. RS-232
7. Fan
8. AC Input terminal
9. AC Output terminal
10. PV positive terminal
11.PV positive terminal
12. Fan
